Sina Ekato
1 / 3
| No. | Material volume (t) | Unit disposing capacity (t/h) | Initial temperature (°C) | Final temperature (°C) | Temperature drop difference (°C) | Calculated cold load (kW) | Affluence factor (1.30) | Designed cooling capacity (kW) |
|---|---|---|---|---|---|---|---|---|
| 1 | 1.00 | 1.00 | 80.00 | 30.00 | 50.00 | 58.15 | 1.30 | 1.30 |
| 2 | 2.00 | 2.00 | 80.00 | 30.00 | 50.00 | 116.30 | 1.30 | 1.30 |
| 3 | 3.00 | 3.00 | 80.00 | 30.00 | 50.00 | 174.45 | 1.30 | 1.30 |
| 4 | 4.00 | 4.00 | 80.00 | 30.00 | 50.00 | 232.60 | 1.30 | 1.30 |
| 5 | 5.00 | 5.00 | 80.00 | 30.00 | 50.00 | 290.75 | 1.30 | 1.30 |
The lowest water output temperature can be 7°C to rapidly cool the materials and guarantee material luster. Especially for cooling products such as detergent, ointment, etc.

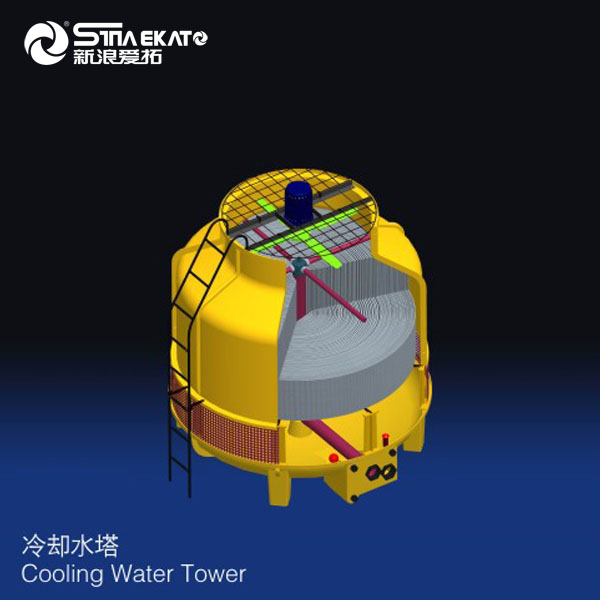

The intelligent microcomputer touchscreen integrated control system is adopted, which can realize linked operation with various water pumps. The cooling tower starting circuit is preserved to monitor the unit operation in an all-round way.

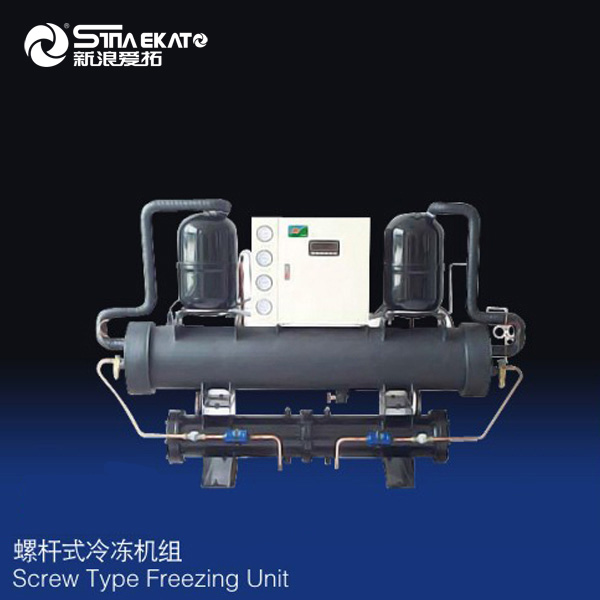

The advanced high efficiency screw compressor is equipped with high quality condenser and evaporator. All products have passed the test by national inspection system, conforming to national standards.
It is provided with safety protection measures for operation of various units to ensure unit operation and safe use by customers.

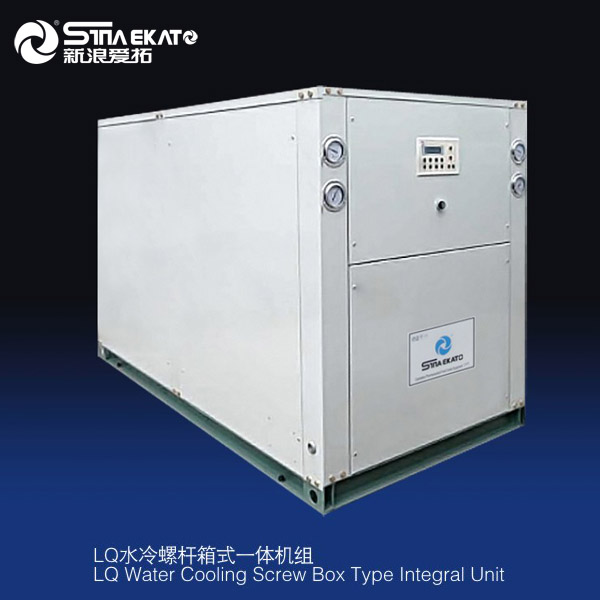

The unit adopts integral design with beautiful appearance.
It is featured by stable performance, low noise and long service life.
Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running.
Shell and tube condenser adopts high-precision external threaded copper design and shell and tube type evaporator adopts inner threaded copper design, with larger heat exchanging area for higher efficiency and maximizing system performance.
Adopted the latest generation PLC controller to realize precision control of the unit, ensuring efficient and stable running.
Instead of capillary copper tube, it is resistant to high temperature and high pressure, and will not cause refrigerant leakage due to excessive pressure.
