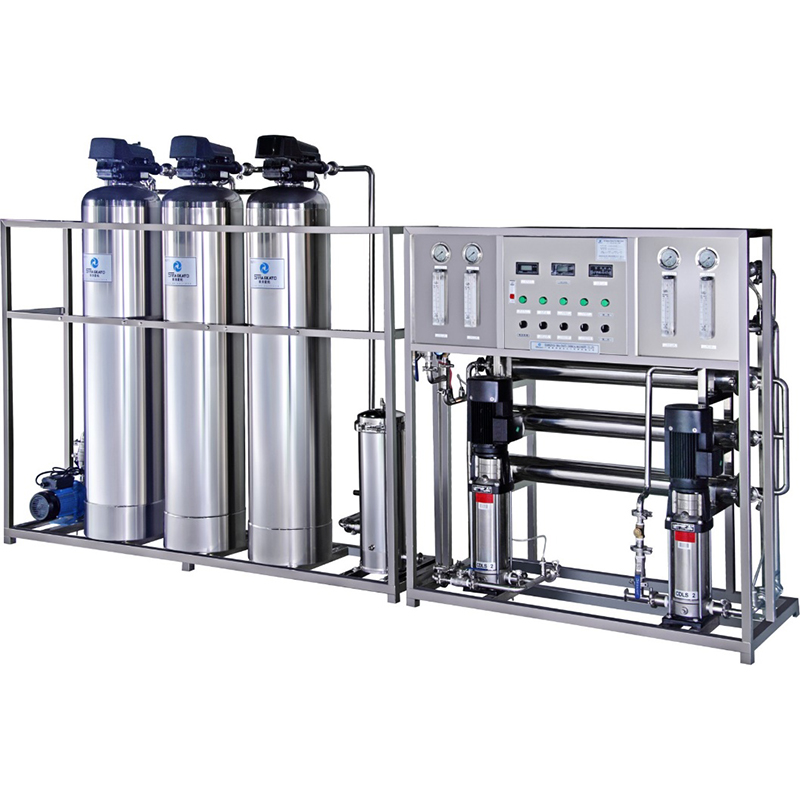

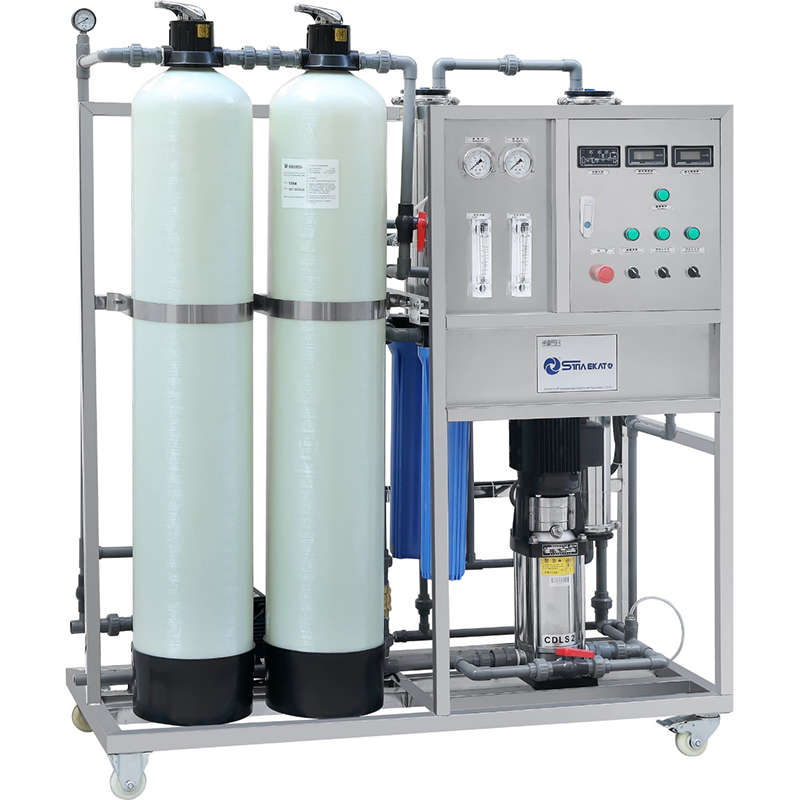

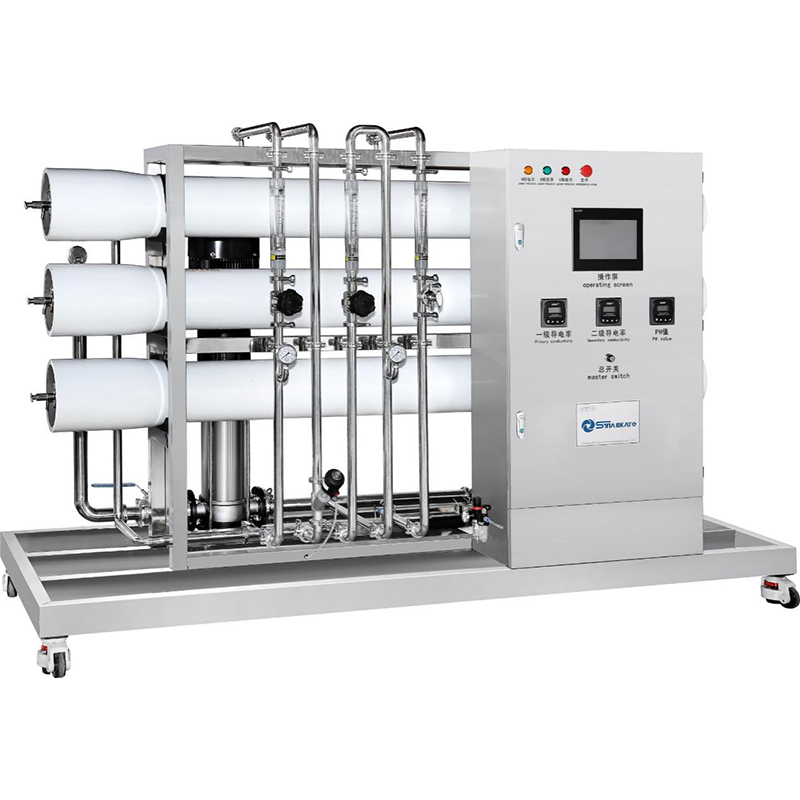

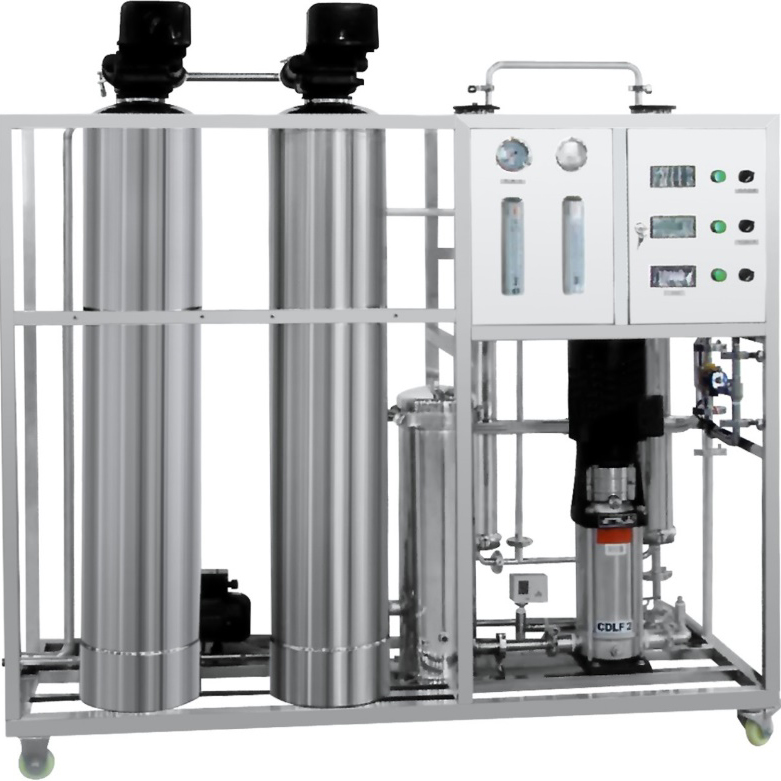

High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
1 / 5
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier
High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier

High-Quality 500L/Hour - 5000L/Hour Water Treatment Plant industrial stainless steel/PVC Reverse Osmosis Water Purification One-stage and Two-stage Manufacturer, Supplier

Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than the osmosis pressure on the solution, As this process is reverse to the natural permeation direction, it is called reverse osmosis. According to different osmosis pressures of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution it does not need heating and there is no phase changing process; therefore, it saves more energy than traditional process.
Send Inquiry

Product Description

System Advantages & Features

This system occupies little space, is easy to operate, and has a wide application range. When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and alkalis, ensuring no secondary pollution while maintaining low operation costs.

⚡
High Desalination Rate: RO desalting rate >99%, machine desalting rate >97%. Effectively removes 98% of organic matters, colloids, and bacteria.
💧
Excellent Conductivity: One-stage ≤ 10 μs/cm, two-stage around 2-3 μs/cm, EDI ≤ 0.5 μs/cm (based on raw water ≤ 300 μs/cm).
🤖
Full Automation: Unattended operation with automatic start/stop based on water levels and timed flushing controlled by IC microcomputer.
🌐
Quality Components: Over 90% of the system consists of imported parts for reliable performance.

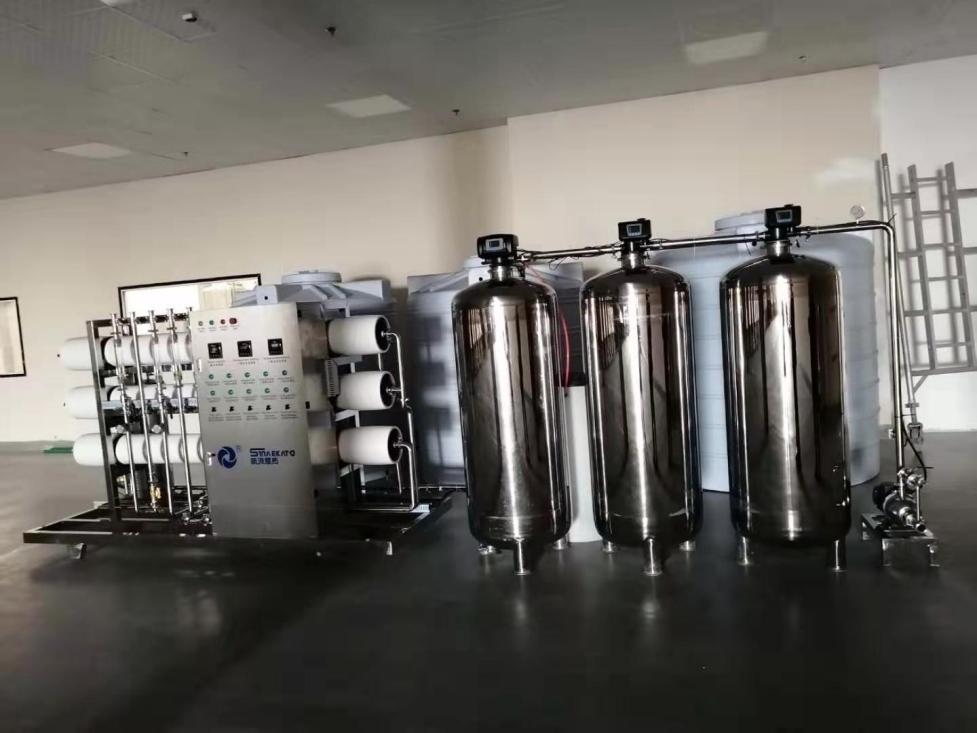

Water Treatment System
Reverse Osmosis Device
Industrial Water Treatment
DUBAI Project - 2000L/Hour
Wide Application Range
Electronic Industry: Integrated circuits, silicon wafers, display tubes, and other components.
Pharmaceutical Industry: Large infusion, injection, tablets, biochemical products, and equipment cleaning.
Chemical Process: Chemical circulating water and chemical product manufacturing.
Electric Industry: Thermal power generation boilers and low-pressure boiler systems.
Food & Beverage: Purified drinking water, beverages, beer, alcohol, and health products.
Desalination: Seawater and saline water treatment for islands, ships, and drilling platforms.

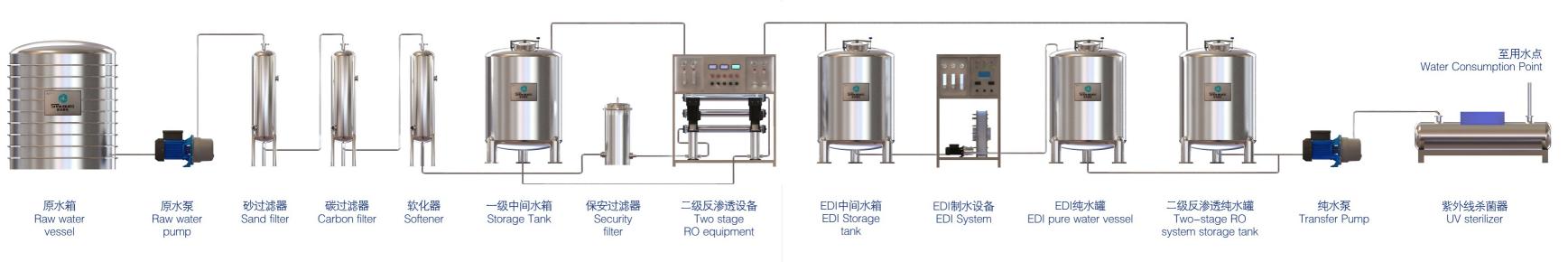

Two-stage Type Flowchart
Raw water ➔ Raw water tank ➔ Raw water pump ➔ Sand filter ➔ Carbon filter ➔ Safety filter ➔ High pressure pump ➔ One stage RO ➔ Middle water tank ➔ High pressure pump ➔ Two stage RO ➔ Stainless steel pure water tank ➔ Pure water pump ➔ Using pure water point

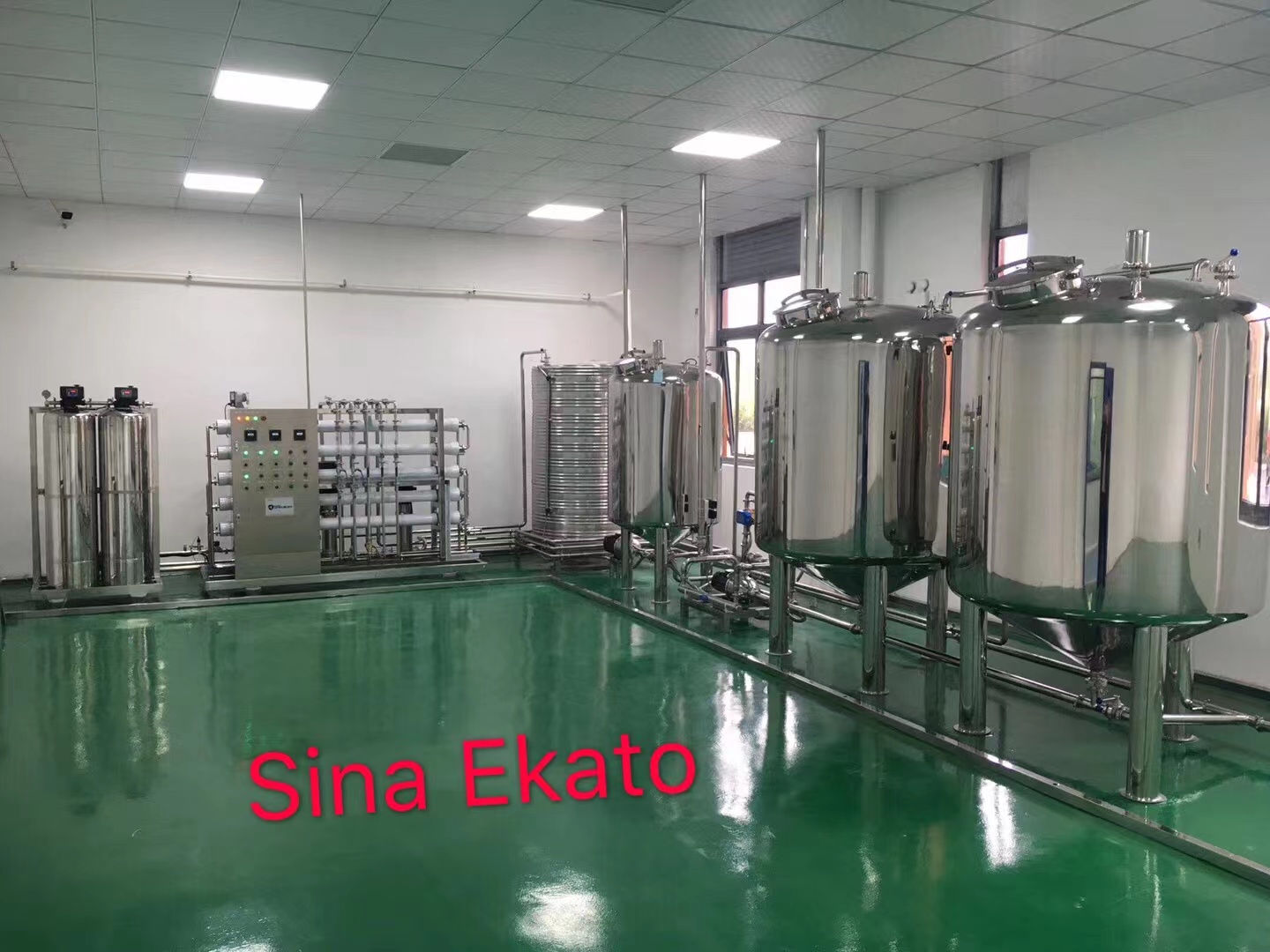

SRI LANKA Project
SRI LANKA Project - 1000L/Hour

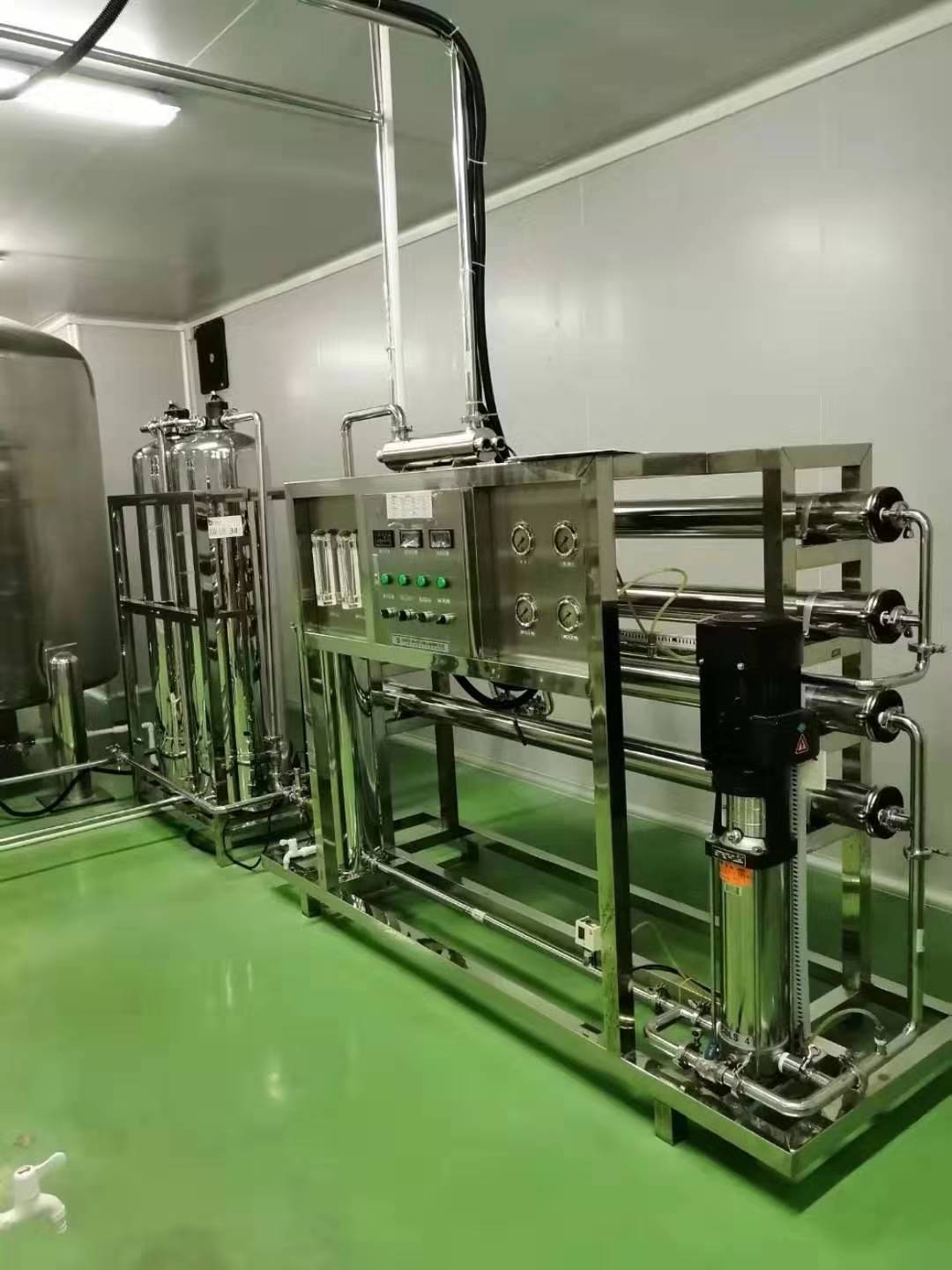

UK Project
UK Project - 1000L/Hour

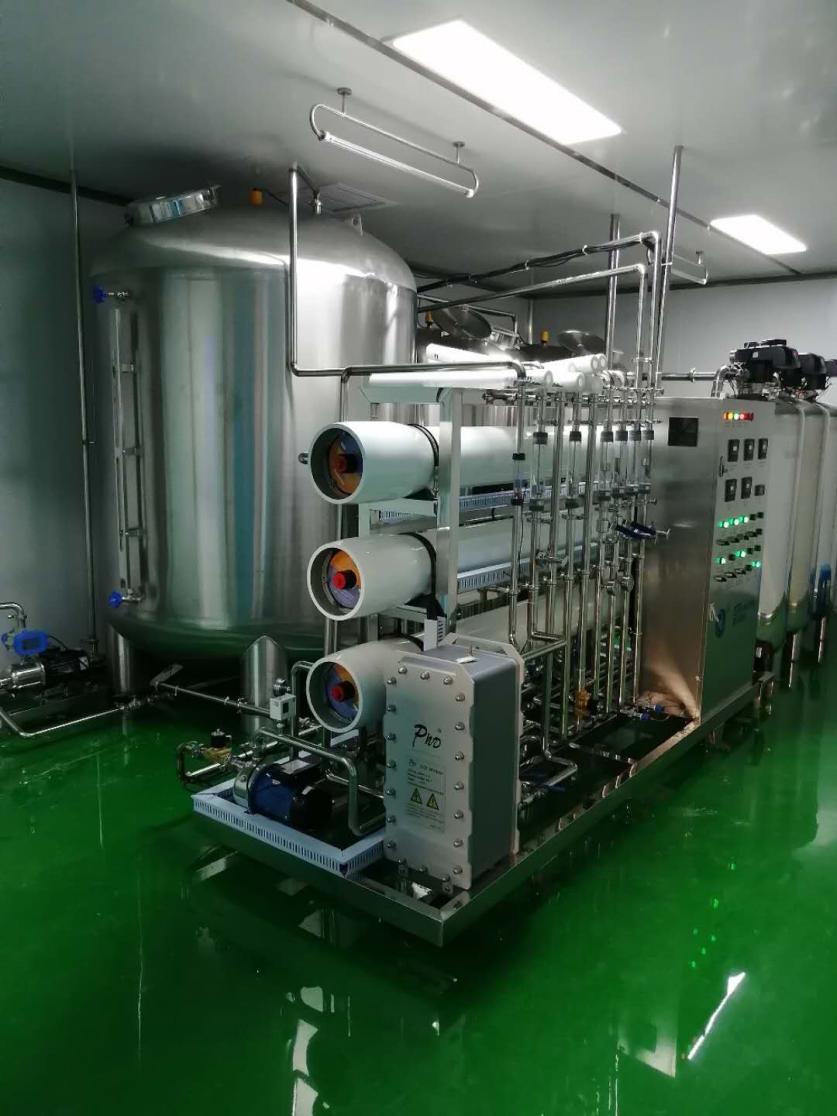

SOUTH AFRICA Project
SOUTH AFRICA - 2000L/HOUR

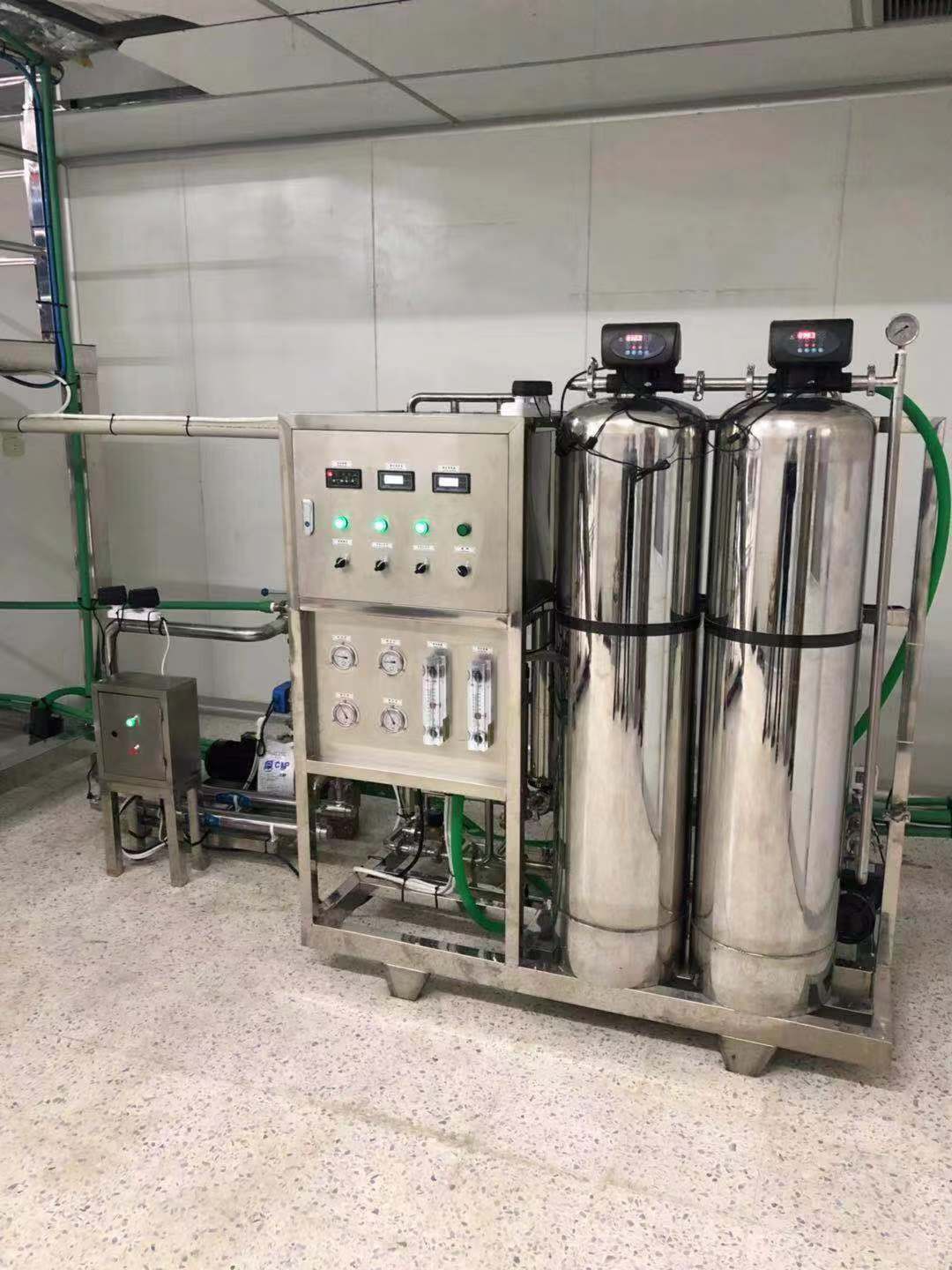

DUBAI Project 3000L
DUBAI Project - 3000L/Hour

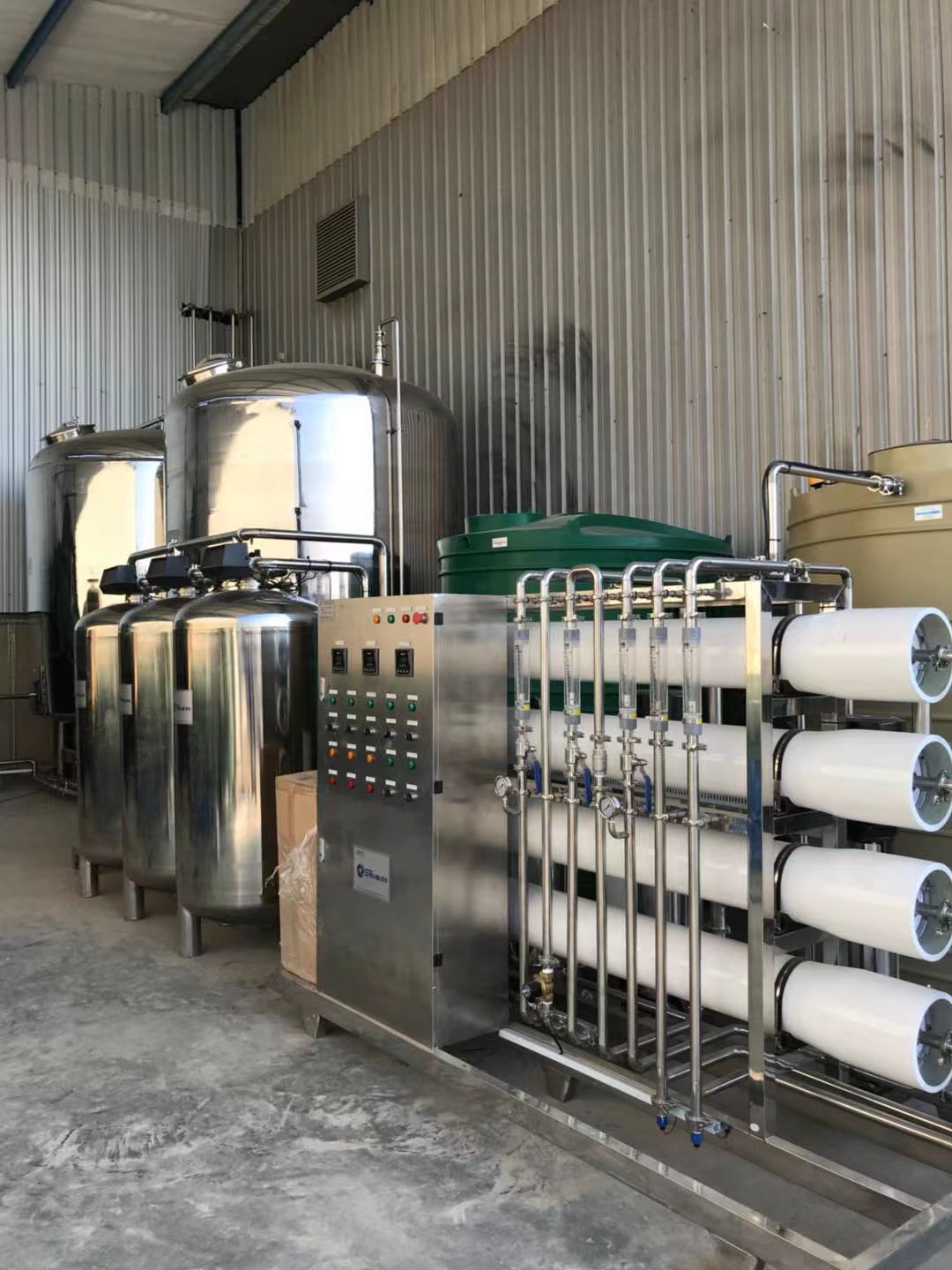

SYRIA PROJECT
SYRIA PROJECT- 500L/HOUR

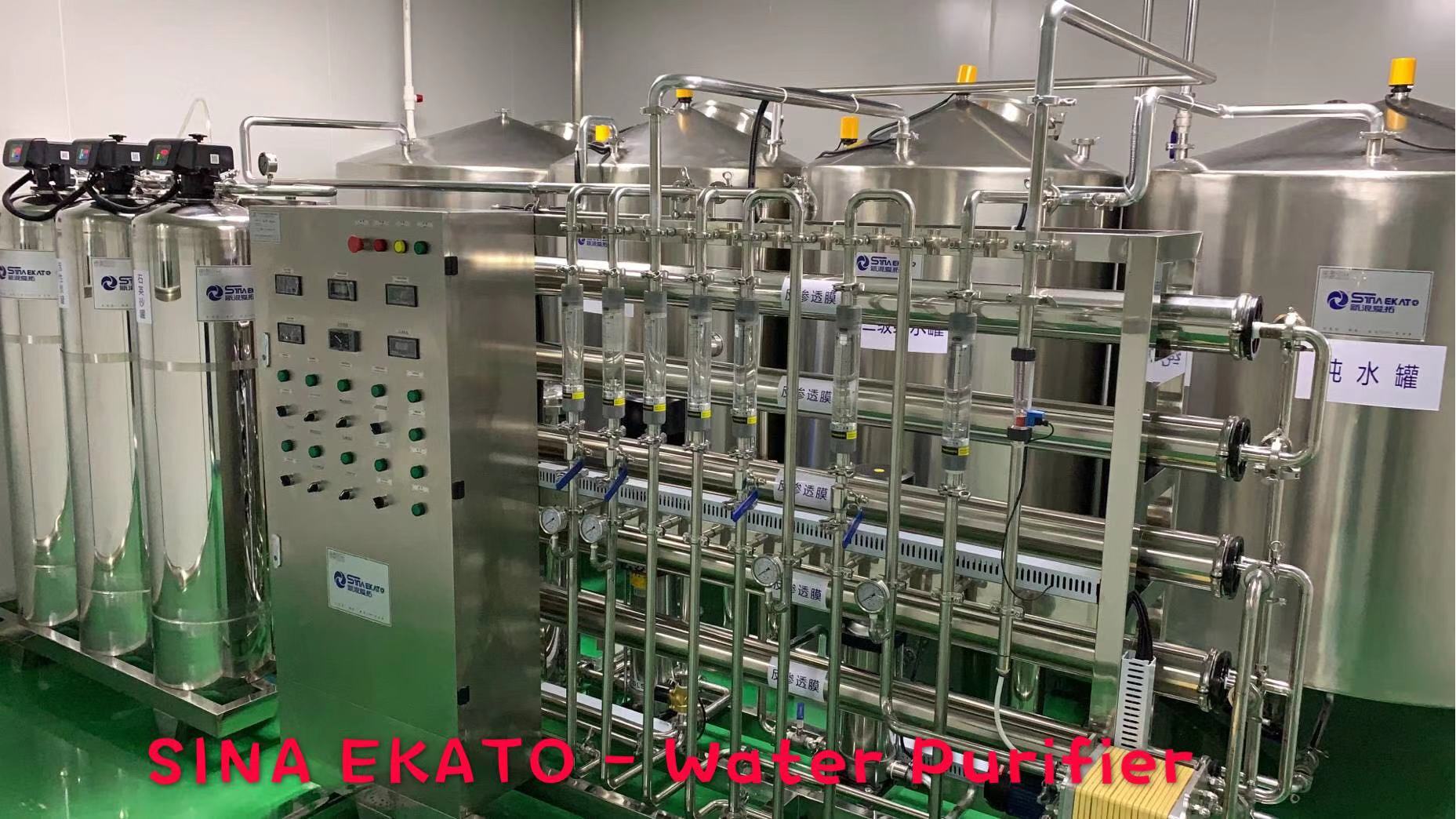

KUWAIT PROJECT
KUWAIT PROJECT - 1000L/HOUR
Auxiliary Equipment & Modules

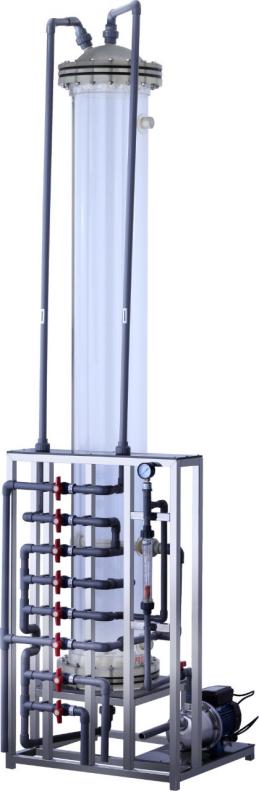

Mixing Bed
CG-Anion Cation Mixing Bed

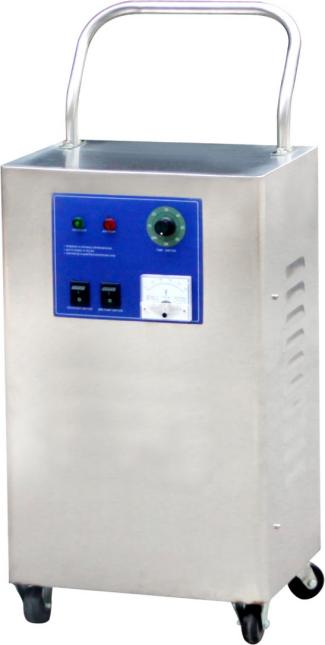

Ozone Generator
Ozone Generator

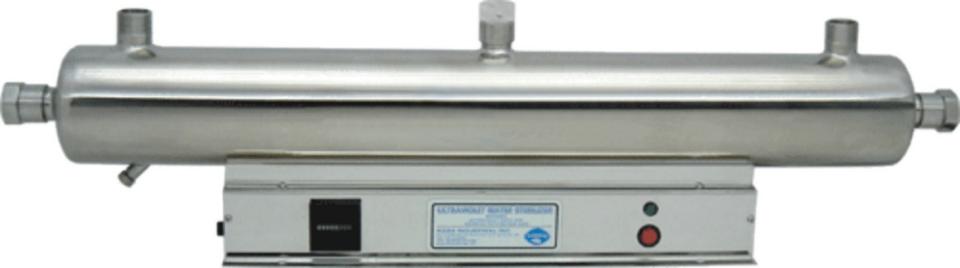

UV Sterilizer
Current Passing Type Ultraviolet Sterilizer
EDI Module
CG-EDI-6000L/Hour
Technical Specifications
Model Capacity (T/H) Power (KW) Recovery (%) One-stage Cond. (μs/cm) Two-stage Cond. (μs/cm) EDI Cond. (μs/cm)
RO-5000.50.7555-75≤102-3≤0.5
RO-10001.02.255-75
RO-20002.04.055-75
RO-30003.05.555-75
RO-50005.07.555-75
RO-60006.07.555-75
RO-1000010.01155-75
RO-2000020.01555-75
No Item Data
1DescriptionPure water treatment purifying machine
2VoltageAC380V-3phase
3ComponentSand filter+carbon filter+soften filter+precision filter+RO filter
4Capacity500L/H (500-5000L/H can be customized)
5PrinciplePhysical filtration + Reverse osmosis filtration
6ControlButton or PLC + Touch screen
Frequently Asked Questions
1. What is the desalination efficiency of the reverse osmosis system?
The system features a reverse osmosis desalination rate of ≥99%, with the overall machine desalination rate reaching ≥97%. It effectively removes 98% of organic matter, colloids, and bacteria.
2. Does the water treatment process cause secondary pollution?
No. Unlike traditional methods, this reverse osmosis device does not consume large amounts of acids and alkalis during industrial water treatment, ensuring no secondary pollution and lower operating costs.
3. How automated is the operation of this machine?
The system is highly automated and can operate unattended. It includes automatic stop/start functions based on water sufficiency, timed flushing controlled by an IC microcomputer, and online display of water conductivity.
4. What quality of finished water can I expect?
The water quality is excellent: first-level conductivity is ≤10 μs/cm, second-level is 2-3 μs/cm, and with EDI, it can reach ≤0.5 μs/cm (assuming raw water ≤300 μs/cm).
5. Can the production capacity be customized for specific needs?
Yes, while standard models range from 500L/H to 20,000L/H, the pure water production capacity can be customized between 500-5000L/H and beyond to meet specific industrial requirements.
6. What are the main components used in the system?
The system utilizes a comprehensive filtration path including sand, carbon, soften, precision, and RO filters. Over 90% of the parts are high-quality imported components.
