Advanced Vacuum Emulsifying Systems
The vacuum emulsifiers produced include many varieties. The homogenizing systems include top homogenization, bottom homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to requirements.
- Precision Speed Adjustment: The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.

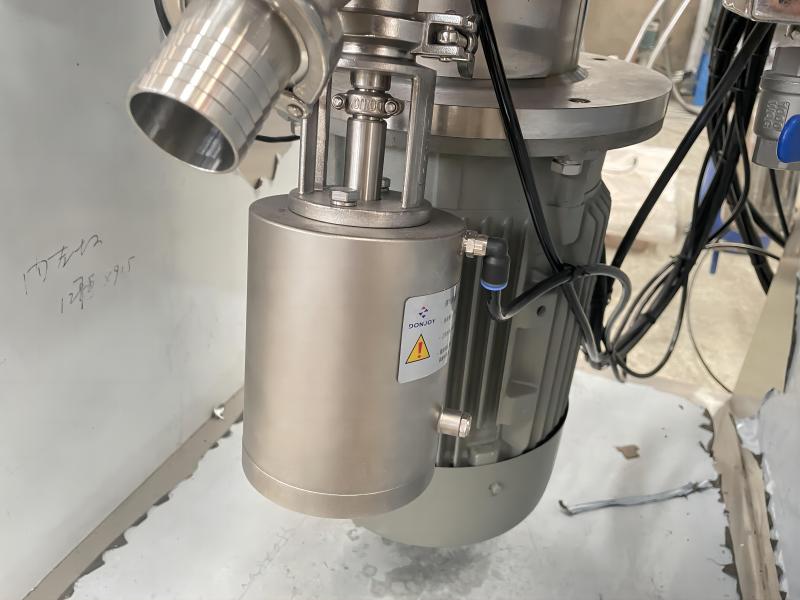

- German Technology: The homogenizing structure adopts the imported double-end mechanical seal effect. Maximum emulsifying rotation speed can reach 4,200 rpm and the highest shearing fineness can reach 0.2-5μm.
- Aseptic Processing: Vacuum defoaming ensures materials meet aseptic requirements. Vacuum material sucking avoids dust, especially for powder materials.
- Easy Maintenance: The pot lid can adopt a lifting system for easy cleaning; the pot can adopt tilt discharge.
- GMP Standards: Welded by imported three-layer stainless steel plate. Tank body and pipes adopt mirror polishing, fully conforming to GMP requirements.
- Stable Control: Heating modes include steam or electric heating. Electric appliances adopt imported configurations to meet international standards.
Installation & Project Management
1. With many years of experience in domestic and international installation, we have successively undertaken the integral installation of hundreds of large-sized projects.
2. Internationally top-ranking professional project installation experience and management experience.
3. After-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.
4. Sincerely providing machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other services.
Industry Brand & Technical Core
Under the support of a German design center and national light industry research institutes, regarding senior engineers and experts as the technological core, this professional manufacturer of various types of cosmetic machinery has become a brand enterprise in the daily chemical machinery industry.
Products are applied in industries such as cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises worldwide.
Quality Certifications & Global Partners
Focus on quality other than quantity certifications
80% of the main parts of our products are provided by world’s famous suppliers. Through long-term cooperation, we provide customers with high quality products and effective guarantees.
- Delivery date: 30~60 days
- Customized plans according to requirements
- Support video factory inspection
- Equipment warranty for two years
- Finished product video inspection support
Product Performance & Features
High speed rotor endows the material with high centrifugal speed and great centrifugal force. When slowing down instantaneously, the material suffers the associative action of cavitation, detonation, shearing and grinding. The degree of uniformity can reach more than 99%.
SME Vacuum emulsifier is professionally designed for cream/paste manufacturing, introducing advanced technology. Components include pre-mixing pots, vacuum emulsifying pot, vacuum pump, hydraulic system, and electric control system.

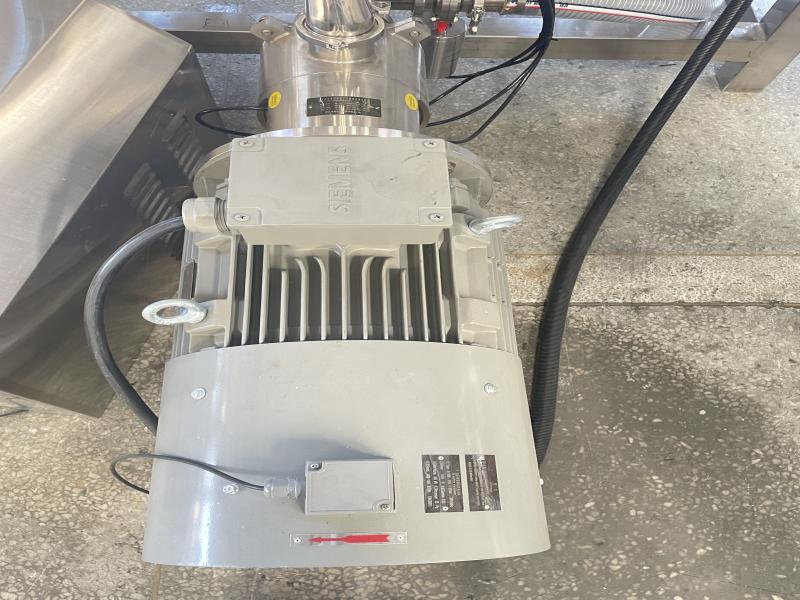

Main pot mixing system adopts two-way wall scraping screw belt mixing with German Siemens motors. Inner layer is made of imported SUS316L stainless steel, while middle and external layers use 304 stainless steel.
Cover Element
For materials of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. Blending is carried out under vacuum to effectively ensure the emulsifying effect. Equipment includes CIP compatibility for convenient cleaning.
Technical Specifications
| Model |
Capacity |
Homogenizer Motor (KW | r/min) |
Stir Motor (KW | r/min) |
Heating Mode |
Vacuum (Mpa) |
| SME-DE5 | 5L | 0.37 | 3000 | 0.18 | 63 | Electric | -0.09 |
| SME-DE50 | 50L | 3 | 3000 | 1.1 | 63 | Steam/Electric | -0.09 |
| SME-DE100 | 100L | 4 | 3000 | 1.5 | 63 | Steam/Electric | -0.09 |
| SME-DE500 | 500L | 11 | 3000 | 4 | 63 | Steam/Electric | -0.08 |
| SME-DE1000 | 1000L | 15 | 3000 | 5.5 | 63 | Steam/Electric | -0.08 |
| SME-DE2000 | 2000L | 15 | 3000 | 7.5 | 63 | Steam | -0.08 |
Production Line Integration
- RO Treatment Water System
- Auto Washing Bottle machine
- Bottle drying machine
- Sterile storage tank
- Auto Liquid filling machines
- Auto labeling machine
The customer is experimenting with face cream in the factory
Frequently Asked Questions (FAQ)
What types of mixing systems are available for the vacuum emulsifiers?
Our systems include single-way mixing, double-way mixing, and helical ribbon mixing to accommodate various material viscosities and process requirements.
Does the equipment comply with international GMP standards?
Yes, all tank bodies and pipes are made of imported stainless steel (SUS316L for contact parts) and feature mirror polishing to fully meet GMP and international aseptic standards.
What is the maximum rotation speed of the homogenizer?
The high-speed homogenizing structure, based on German technology, can reach rotation speeds up to 4,200 rpm, achieving a shearing fineness of 0.2-5μm.
Can the machine handle high-viscosity materials?
For materials exceeding 50,000 C.P.S, we offer specialized high-viscosity vacuum emulsifying homogenizers equipped with hydraulic pressure and frequency conversion control.
What are the available heating modes for the tank?
Depending on your facility's utility availability and technological requirements, you can choose between steam heating or electric heating.
What is the typical delivery timeframe and warranty?
The standard delivery date ranges from 30 to 60 days. We provide a comprehensive two-year warranty on the equipment along with operational video support.
