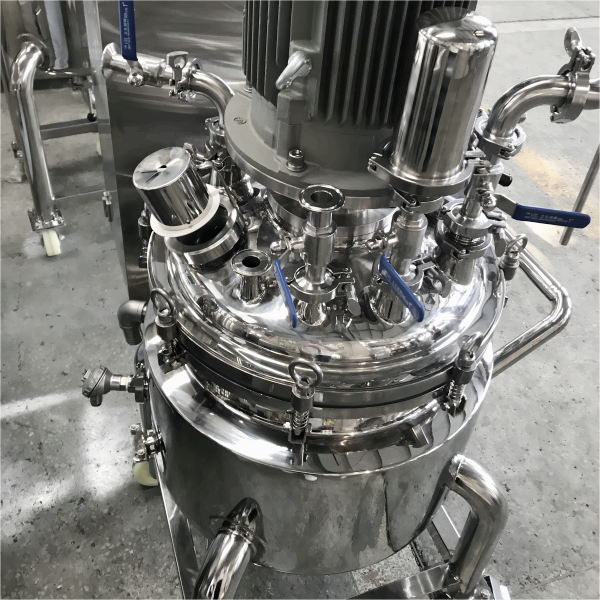

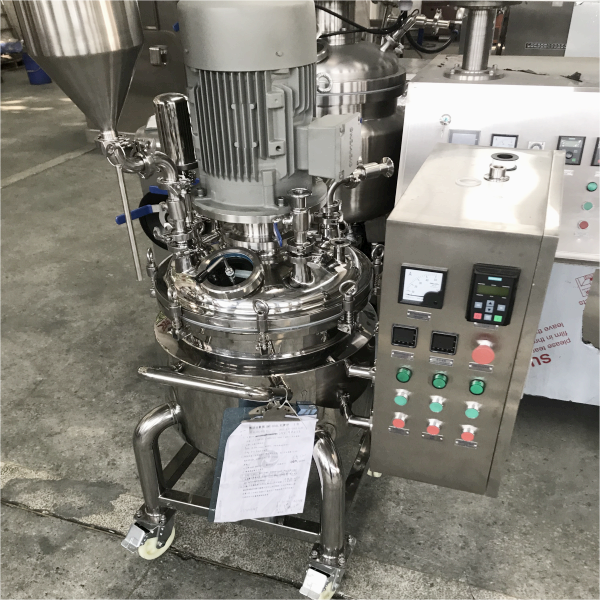

The pot body is a three-layer stainless steel structure, and the outermost layer is a thermal insulation layer. The intermediate layer is a heating layer that heats the medium through an electric heating generator to heat the material. The inner layer is the direct contact layer with the material, and the parts of the contact material are made of stainless steel SS316L. The whole equipment complies with GMP standard.
All contact materials are made of imported stainless steel. The interior surface of the vessel is subjected to mirror polishing 300EMSH(sanitary level), which is in accordance with sanitary requirements. The stirring pot body and the stirring pot cover are connected with flange sealing. The stirring tank and the stirring tank cover can feed, discharge, observe, measure temperature, measure pressure, steam fractionation, safety vent and other process pipe holes according to the process requirements.
Dispersion System: Driven by Siemens motors, transmitting power through a drive shaft (mechanically sealed) and a coupling to a dual dispersion disc. Speed regulation is achieved by controlling the Siemens inverter in the electrical box. 360° cleaning ball - CIP Cleaning water sprinkler inside the pot.
Reverse Osmosis Water Treatment

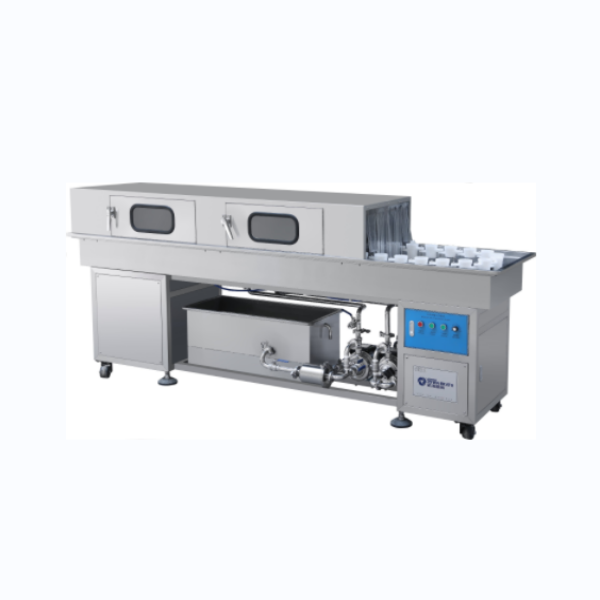

Bottle Washing Machine
Stainless Steel Storage Tank
TBJ Round Flat Bottle Labeling Machine
LBFK Induction Sealer
Bottle-Drying Sterilizer
A professional manufacturer of various types of cosmetic machinery and equipment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as: cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises.
Packaging Details: Standard Export Plywood Case/ Steel Case, Suitable Size for Container Transportation.
Compliance: In strict accordance with DIN, SMS, 3A, IDF, ISO and other domestic and foreign standards. All technologies in line with GMP, QS, HACCP requirements.
| Product name | Stirring pot volume(L) | Motor power(KW) | Mixing Speed(r/min) | Heating power | Pot pressure(Mpa) |
| SME-B-50L | 50L | 5.5(KW) | 0-3400(r/min) | 3KW | 0.1-0.15(Mpa) |
3L Funnel Hopper
Electrical Box Interior
Control Buttons

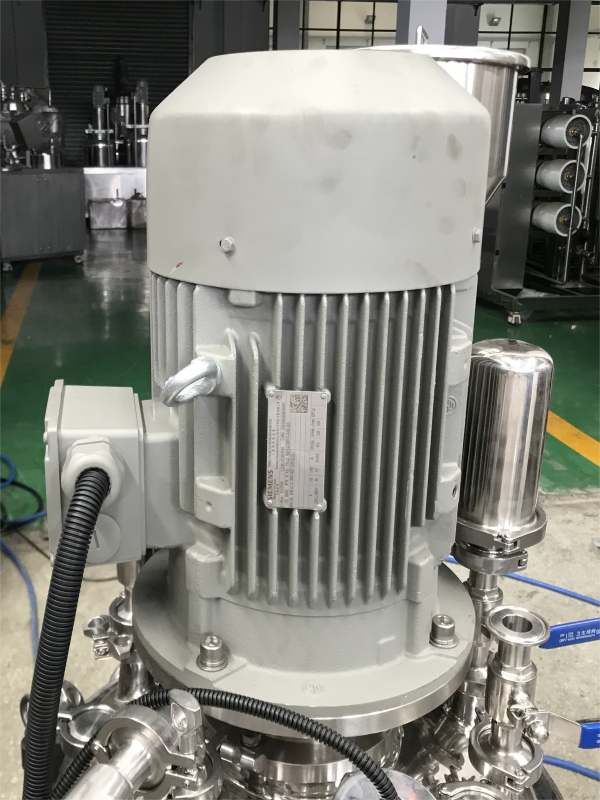

Siemens Motors

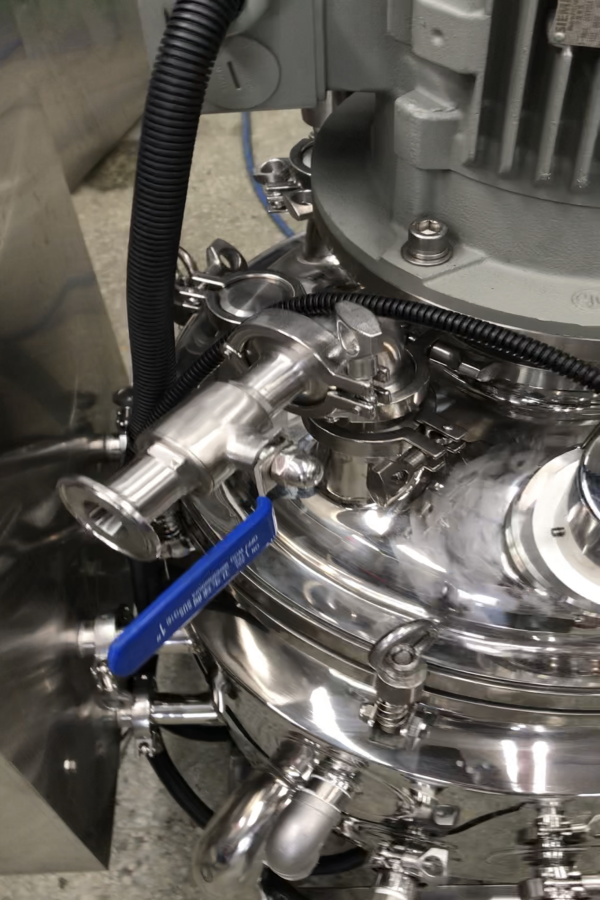

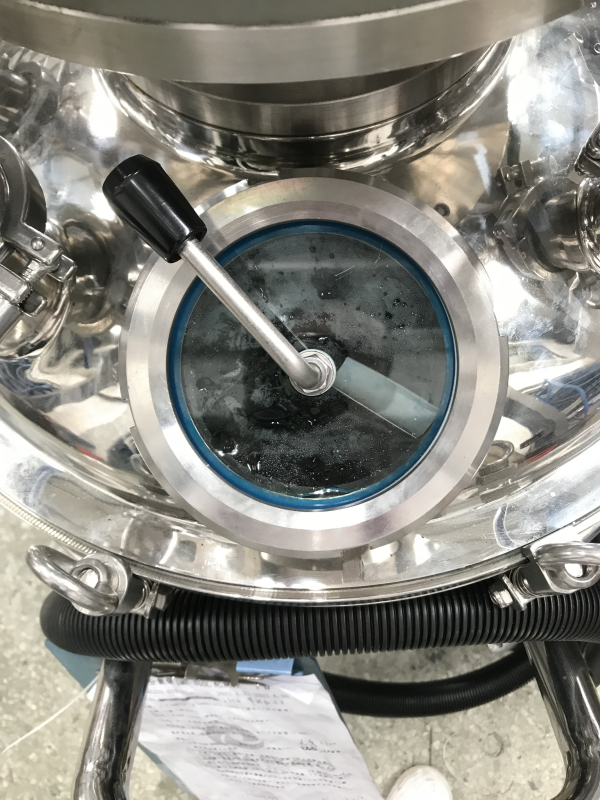

Manhole with Sight Glass

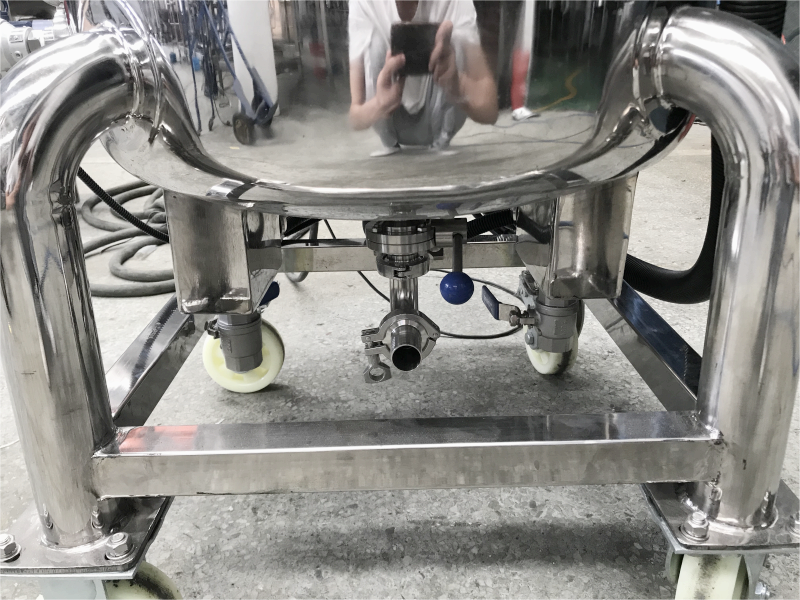

Discharge Valve
Pot body & Flange lock connection with buckle

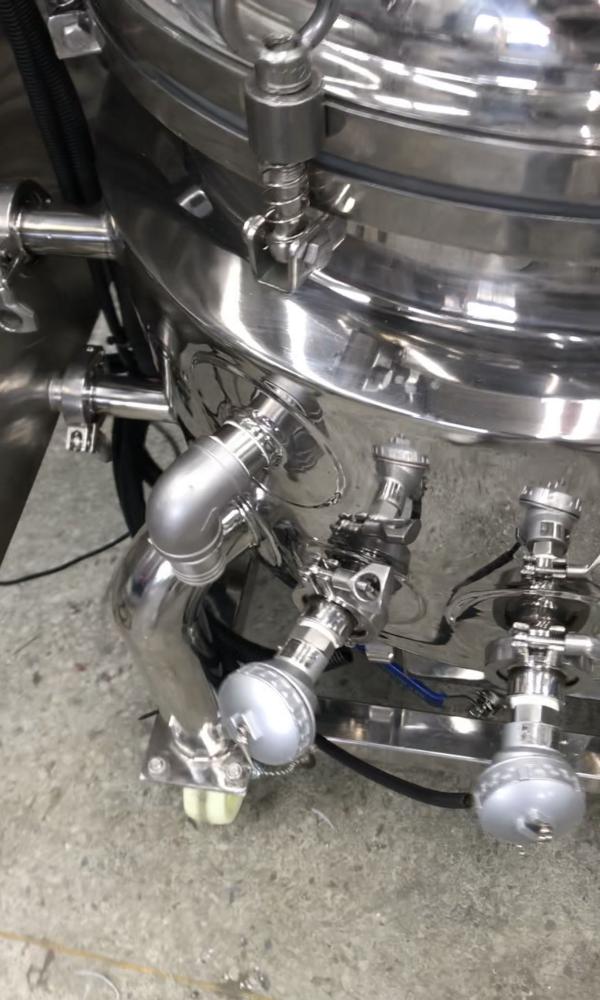

Temperature Control
Heating Elements
A: The inner layer in contact with materials is made of high-grade stainless steel SS316L, and the whole equipment follows GMP standards with a three-layer stainless steel structure.
A: Yes, the interior surface features mirror polishing to 300EMSH (sanitary level) and the design follows DIN, SMS, 3A, IDF, and ISO standards.
A: We utilize Siemens motors for the dispersion system and Siemens inverters for stable speed regulation, ensuring the equipment meets international performance standards.
A: We provide a two-year equipment warranty. The standard delivery date is approximately 30 to 60 days depending on customization requirements.
A: Absolutely. We offer customized plans including specific process pipe holes for feeding, discharging, temperature measurement, and pressure monitoring according to your needs.
A: Our machinery is widely used in cosmetics, pharmaceuticals, food processing, bioengineering, water treatment, and chemical industries.
