The SME-AE Vacuum Emulsifying Mixer utilizes advanced technology that combines the power of vacuum and intense agitation to create the perfect blend of ingredients.  Whether you’re a DIY skincare enthusiast or a small-to-medium enterprise, this mixer is an absolute game-changer for achieving that coveted professional finish.
Send Inquiry

Product Description

⚙️ Working capacity from 100L.
🧪 Suitable for high viscosity material of 10,000~180,000cps viscosity.
🔄 Has the best internal circulation system effect.
✅ System design and manufacture process reach at GMP standard.
🏗️ Lifting emulsifier, including emulsifying pot, operating platform, oil and water pot, and controller.
🔧 Pot device including rack, cover fixed plate, mixing mechanism, dumping, and cooling circulation mechanism.
🪟 Pipe construction design with glass window to monitor material running; Adopted SS304/SS316 for corrosion resistance.
🌪️ Homogeneous stirring and paddle stirring can be used separately or simultaneously for granulation and emulsification.
❄️ Cooling water can be connected to the jacket; includes insulation layer outside the mezzanine.
⏱️ Shorter cycle time compared to standard electrical heating series vacuum emulsifying mixers.
📦 Full system integrates mixing, dispersing, emulsifying, homogenizing, vacuum, heating, and cooling.
🛡️ Homogenizing motor mechanical structure includes a cooling system for longer service life.
🌡️ Double temperature probes and controllers for electrical heating in the main vacuum homogenizer.
🚀 The homogenizer can also be used as a conveying pump for finished products.
🥣 Fixed paddle (SS316) and wall scraper (food grade material) mixing system.
⚡ Variable speed: Homogenizer 1-6000RPM and agitator 1-65RPM.
🕹️ PLC touch screen controller for easy operation and full automatic processing.
💎 Key parts from original imported brand suppliers ensure quality.

Professional manufacturer of various types of cosmetic machinery and equipment. The products are applied in cosmetics, medicine, food, chemical industry, electronics, etc.

YT-10P-5M Lipstick Freeing Tunnel

SME-65L Lipstick Machine

Lipstick Filling Machine

Core Product

Reverse Osmosis Water Treatment

Production Capabilities

  • 🔹 Cosmetics Production: From washing, drying, RO water treatment to filling and labeling.
  • 🔹 Liquid Products: Shampoo, liquid soap, and detergent production lines.
  • 🔹 Fragrance: Specialized perfume production lines.
  • 🔹 Other: Powder machines, laboratory equipment, and chemical processing units.

Stainless Steel Storage Tank

Fully Automatic Production Line

Daily Cosmetic Applications
Hair ConditionerFacial MaskMoisturizing LotionSuncream
Skin CareShea ButterBody LotionSunscreen Cream
CreamHair CreamCosmetic PasteBB Cream
LotionFace Wash LiquidMascaraFoundation
Food & Pharmaceutical Applications
CheeseMilk ButterOintmentKetchup
MustardPeanut ButterMayonnaiseWasabi
ToothpasteMargarineSalad DressingSauce
Model Capacity Homogenizer (KW) Stir Motor (KW) Dimensions (L*W*H mm) Limit Vacuum
SME-AE55L0.370.181260*540*1600-0.09Mpa
SME-AE5050L31.12600*2250*1950-0.09Mpa
SME-AE100100L41.52750*2380*2100-0.09Mpa
SME-AE500500L1143650*3300*2850-0.08Mpa
SME-AE10001000L155.54200*3650*3300-0.08Mpa

Mixing Paddle - Double way with scraper

Homogenizer Head - High Shear Force

Siemens Touch Screen Interface

Oil-Water Pre-treatment Pot

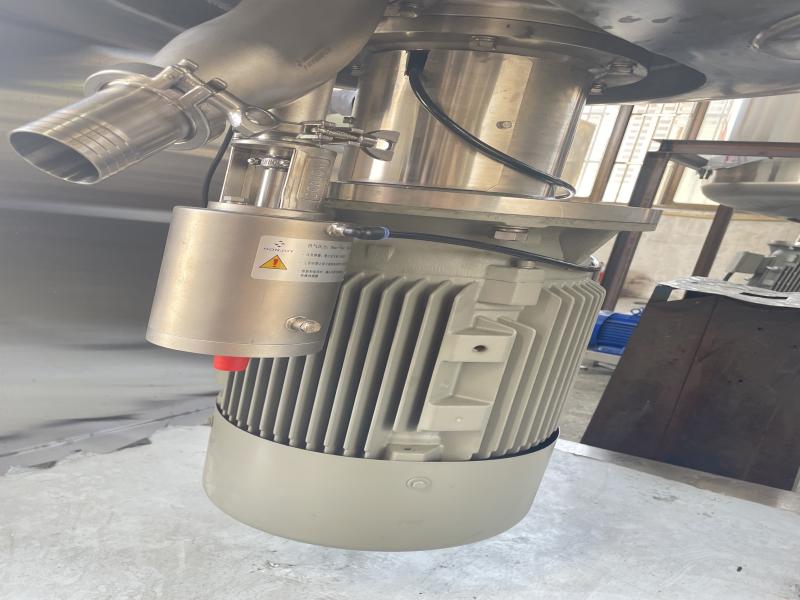

Bottom Homogenizer Detail

Main Emulsifying Pot

Frequently Asked Questions
What is the viscosity range this machine can handle?
The homogenizer is suitable for high viscosity materials ranging from 10,000 to 180,000 cps.
Does the equipment comply with hygiene standards?
Yes, the entire system design and manufacturing process reach the GMP standard, featuring SS316L stainless steel for material contact parts.
Can the machine perform both heating and cooling?
Yes, the machine features a double jacket design for both heating and cooling, with an insulation layer to protect operators and maintain efficiency.
Is the operation of the machine difficult?
The machine uses a Siemens PLC touch screen controller, which is designed for "fool-style" operation, making it very easy to learn and manage.
What is the warranty and after-sales policy?
We offer a one-year warranty and lifetime after-sales service. We provide technical support via email or by sending engineers to your facility if required.
Can the machines be customized according to specific requests?
Yes, most of our machines are customized based on customer requirements, including capacity, functions, and layout.
