Vacuum Homogenizer Mixer Features
- ✔ 1. Easy emulsifying through mixing for high viscosity material.
- ✔ 2. It can be used for vacuuming, heating, pressurizing and cooling process.
- ✔ 3. Micro-grinding, emulsifying, agitating, homo-mixing and dispersing process can be completed in very short time.
- ✔ 4. Homogenizer emulsifying function and paddle mixer can be operated separately.
- ✔ 5. Adopt panel or button control. It is AUTOMATIC.
- ✔ 6. 360 degrees scrapping mixing agitator and high shear homogeizer mixer.
- ✔ 7. 300U mirror polishing, contact part is stainless steel 316L, completely meet GMP standards.

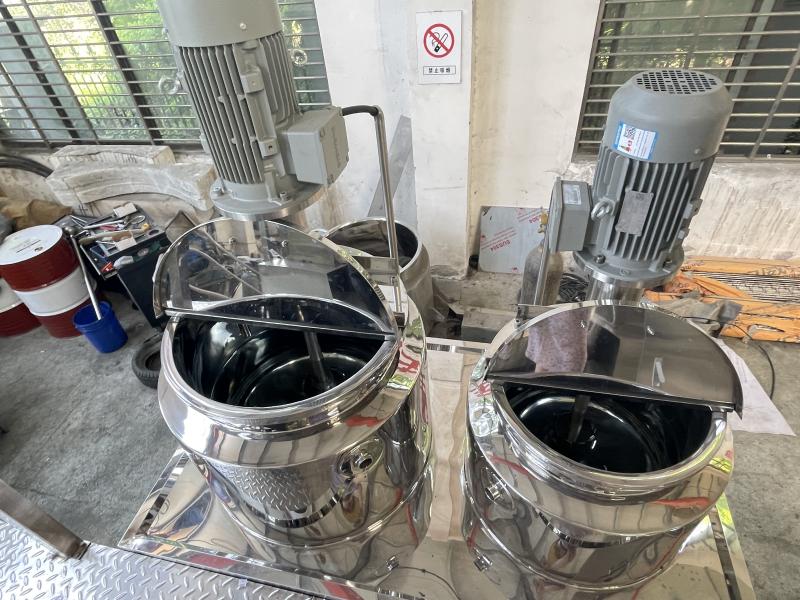

- ✔ 8. Vacuum system to suck the products into emulsifying working pot, and remove bubbles during emulslifying and mixing process.
- ✔ 9. Discharge products by bottom outlet, or connect with air compressor to pressure discharge products with high viscosity.
With the solid backing of a leading research and design center, and regarding senior engineers and experts as the technological core, our professional manufacturing team produces various types of cosmetic machinery and equipment. The products are applied in such industries as cosmetics, medicine, food, chemical industry, electronics, etc., serving many nationally and internationally famous enterprises.
Lipstick Production Series
YT-10P-5M Lipstick Freeing Tunnel
SME-65L Lipstick Machine
Lipstick Filling Machine
Water Treatment & Storage Systems
Reverse Osmosis Water Treatment
Stainless Steel Storage Tank
Fully Automatic Production Line
Application Scope
| Hair Conditioner |
Facial Mask |
Moisturizing Lotion |
Suncream |
| Skin Care |
Shea Butter |
Body Lotion |
Sunscreen Cream |
| Cream / Lotion |
Hair Cream / Dye |
BB Cream / Foundation |
Mascara / Lip Balm |
| Cheese / Butter |
Milk / Margarine |
Ointment / Toothpaste |
Ketchup / Mustard |
| Mayonnaise |
Peanut Butter |
Salad Dressing |
Sauces / Wasabi |
Technical Specifications
| Model |
Capacity |
Homogenizer (KW) |
Stir Motor (KW) |
Dimension (L*W*H) |
Total Power (KW) |
Vacuum (Mpa) |
| SME-5 | 5L | 0.37 | 0.18 | 1260x540x1600 | 5 | -0.09 |
| SME-10 | 10L | 0.75 | 0.37 | 1300x580x1600 | 6 | -0.09 |
| SME-50 | 50L | 3 | 1.1 | 2600x2250x1950 | 18 | -0.09 |
| SME-100 | 100L | 4 | 1.5 | 2750x2380x2100 | 32 | -0.09 |
| SME-500 | 500L | 11 | 4 | 3650x3300x2850 | 63 | -0.08 |
| SME-1000 | 1000L | 15 | 5.5 | 4200x3650x3300 | 90 | -0.08 |
Key Components & Details
- Sealed Manhole: Convenient to clean and maintain.
- Glass View Window: Check inside working situation.
- CIP System: 360 degrees rotate spray for cleaning.
- Mixing Paddle: Frame mixer with Teflon scrapers (high temperature resistance, food grade).
- Homogenizer Mixer: High shear emulsifier, 0-2880rpm.

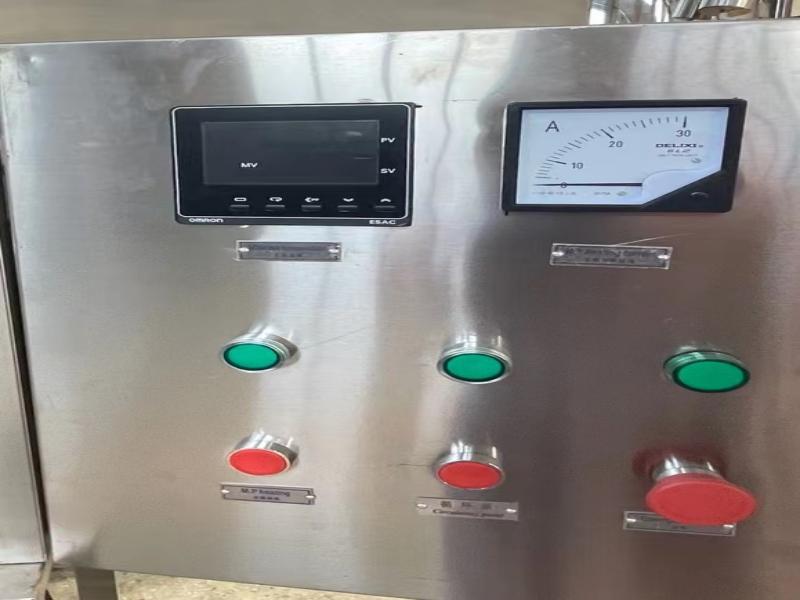

Control & Auxiliary Systems
Frequently Asked Questions
Q1: Are you a professional manufacturer?
Yes, we are a professional factory with more than 20 years of manufacturing experience specializing in chemical and cosmetic machinery.
Q2: How long is the machine warranty and after-sales service?
Our warranty is one year. We provide lifetime after-sales service. If problems occur, we offer email solutions or dispatch engineers to your facility if necessary.
Q3: How is the quality controlled before delivery?
Our quality control team tests machine performance and running speed before shipment. We also provide testing procedure videos for customers who cannot visit in person.
Q4: Are the machines difficult to operate?
No, our machines feature a user-friendly design. we provide instruction videos and can send engineers for onsite installation and staff training if required.
Q5: Can the machines be customized?
Yes, OEM is acceptable. Most of our machines are customized based on the customer's specific production requirements and situation.
Q6: What materials are used for the contact parts?
All contact parts are made of high-quality stainless steel 316L, featuring 300U mirror polishing to meet strict GMP standards.
