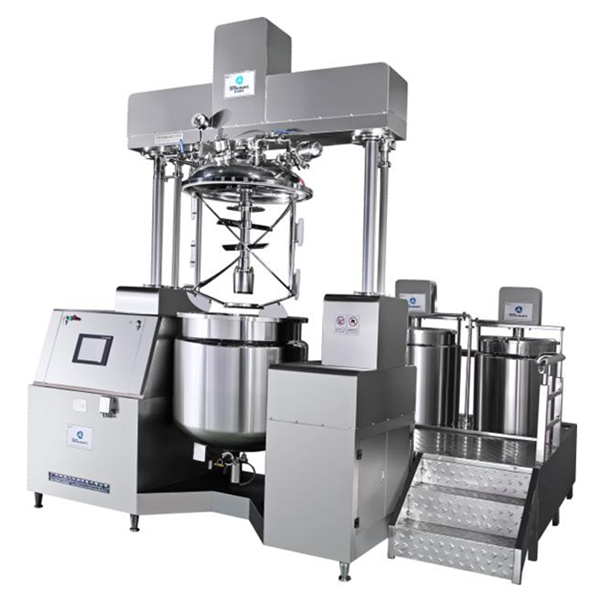

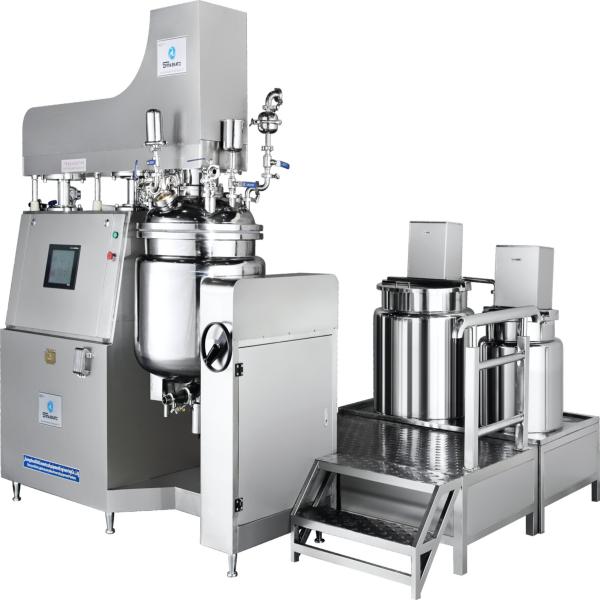

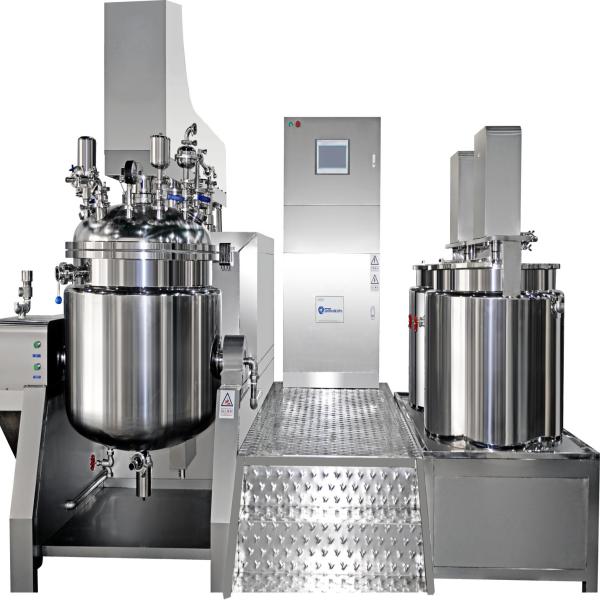

CE Certification SinaEkato double cylinder vacuum homogenizing emulsifier Supplier, Suppliers

SINA EKATO vacuum emulsifying mixer is good for different kinds of foods cosmetics ointment product. Adopt the Germany technology homogenizer, it's good for shorten the goods production time. To meet the customers need, SINA EKATO provide customized service, and can customize the mixer accroding to customer's request.

Send Inquiry

Product Description

Daily Cosmetic Applications

hair conditioner

facial mask

moisturizing lotion

suncream

skin care

shea butter

body lotion

sunscreen cream

cream

hair cream

cosmetic paste

BB Cream

lotion

face wash liquid

mascara

foundation

hair color

face cream

eye serum

hair gel

hair dye

lip balm

serum

lip gloss

emulsion

lipstick

highly viscous product

shampoo

cosmetic toner

hand cream

shaving cream

moisturizing cream

Food & Pharmaceutical Applications

cheese

milk butter

ointment

ketchup

mustard

peanut butter

mayonnaise

wasabi

toothpaste

margarine

Salad dressing

sauce

Vacuum Emulsifying Homogenizer Features

For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. Raw materials can be directly sucked into the groove by the machine. The machine is equipped with vacuum, hydraulic pressure, heating, cooling and other functions.

Emulsifying, blending and dispersion completed within a short period of time.

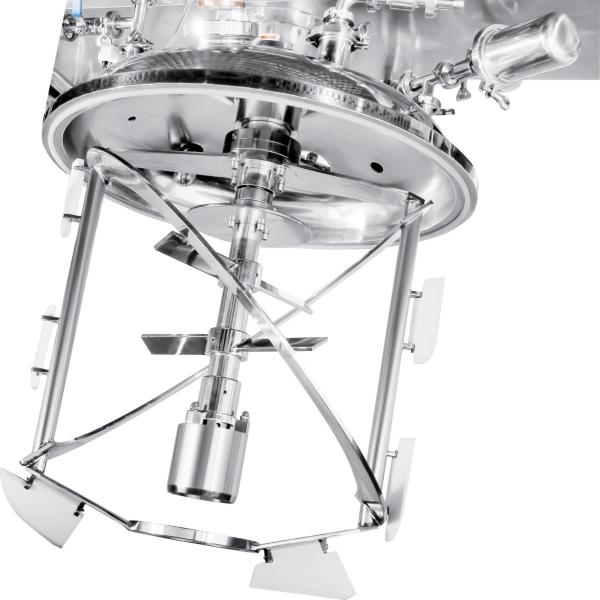

Slow speed blade type blending and high speed homogenizing systems with frequency conversion control.

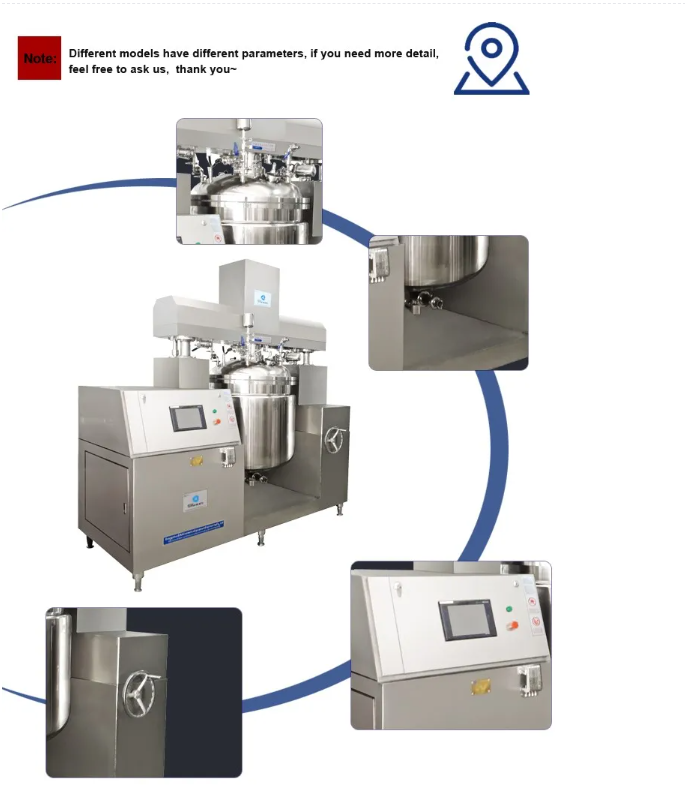

Choice of push button control or PLC touch screen system.
Contact parts made of stainless steel SS316L; equipment conforms to GMP standard.
Blending carried out under vacuum to ensure emulsifying effect.
Equipped with CIP system for convenient cleaning.

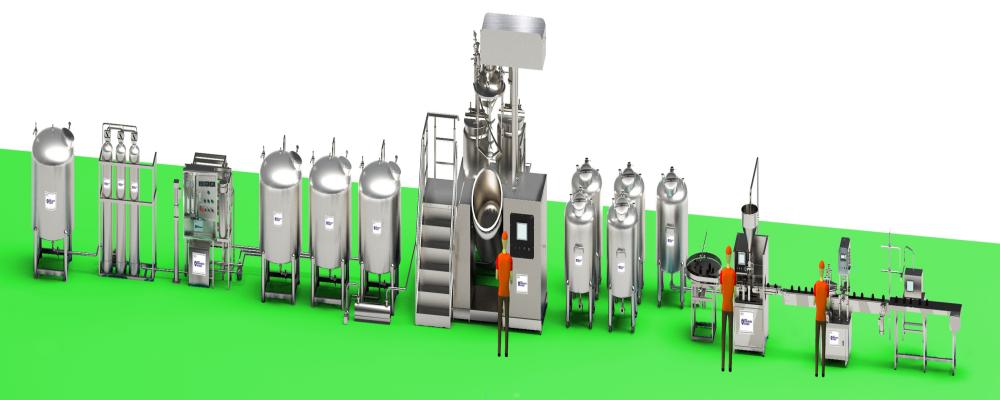

Available Production Lines

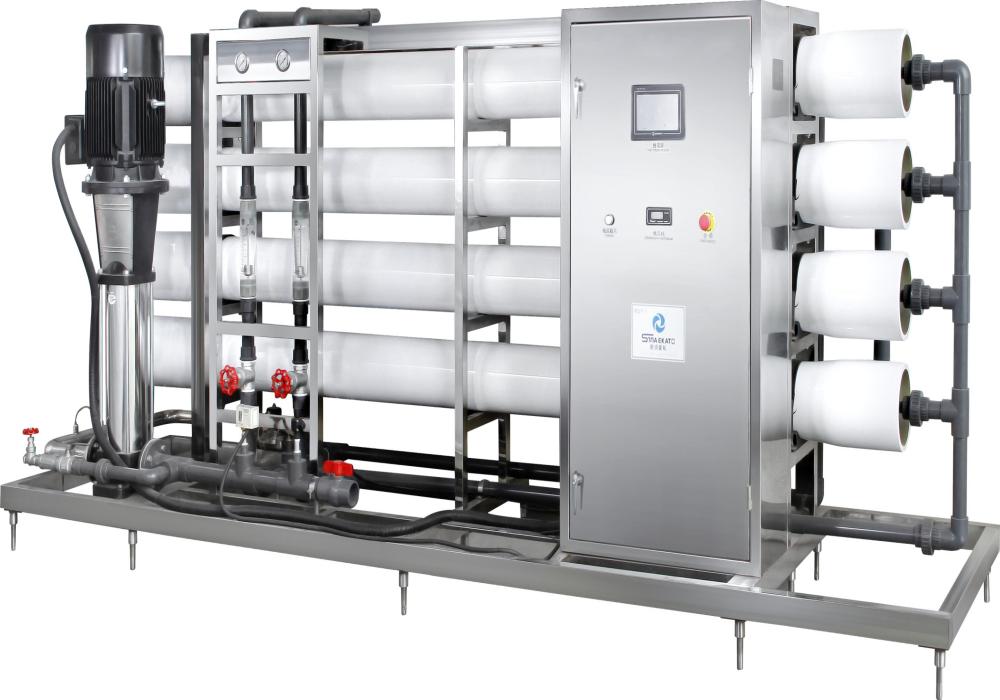

Cosmetics cream & ointment line: Bottle washing, drying oven, RO pure water equipment, mixer, filling, capping, labeling, and packing machines.
Liquid wash production line: Shampoo, liquid soap, liquid detergent (dish, cloth, toilet).
Perfume production line: Specialized mixing and filtration equipment.
Additional Machinery: Powder machines, lab equipment, and specialized food/chemical processors.

Technical Specifications

Model	Capacity	Homogenizer (KW)	Stir (KW)	Stir (r/min)	Length (mm)	Width (mm)	Height (mm)	Total Power (Elec)	Limit Vacuum
SME-D5	5L	0.37	0.18	63	1260	540	1600	5KW	-0.09Mpa
SME-D10	10L	0.75	0.37	63	1300	580	1600	6KW	-0.09Mpa
SME-D50	50L	3	1.1	63	2600	2250	1950	18KW	-0.09Mpa
SME-D100	100L	4	1.5	63	2750	2380	2100	32KW	-0.09Mpa
SME-D200	200L	5.5	2.2	63	2750	2750	2350	45KW	-0.09Mpa
SME-D300	300L	7.5	2.2	63	2900	2850	2450	49KW	-0.085Mpa
SME-D500	500L	11	4	63	3650	3300	2850	63KW	-0.08Mpa
SME-D1000	1000L	15	5.5	63	4200	3650	3300	90KW	-0.08Mpa

Note: In case of inconformity of data due to technical improvement, the real object shall prevail.

Frequently Asked Questions (FAQ)

What materials are these emulsifying machines suitable for?

These machines are designed for a wide range of materials, especially those with high viscosity (above 50,000 C.P.S), such as cosmetic creams, ointments, peanut butter, and chemical pastes.

What are the main functions of the vacuum emulsifying homogenizer?

The machine integrates vacuum suction, hydraulic lifting, heating, cooling, high-speed homogenizing, and slow-speed blade blending for comprehensive material processing.

Is the equipment compliant with industry hygiene standards?

Yes, all parts that come into contact with materials are made of high-quality stainless steel SS316L, and the entire equipment design conforms to GMP standards.

How is the cleaning process managed for these machines?

The equipment is equipped with a CIP (Clean-in-Place) system, allowing users to conveniently connect their own cleaning systems to sanitize the machinery effectively.

What control systems are available for the equipment?

Users can choose between a standard push-button control system or an advanced PLC touch screen system with frequency conversion control for both blending and homogenizing.

What capacity ranges are available for the SME-D models?

The capacity ranges from laboratory-scale 5L units up to large-scale production models of 2000L to meet different processing requirements.
