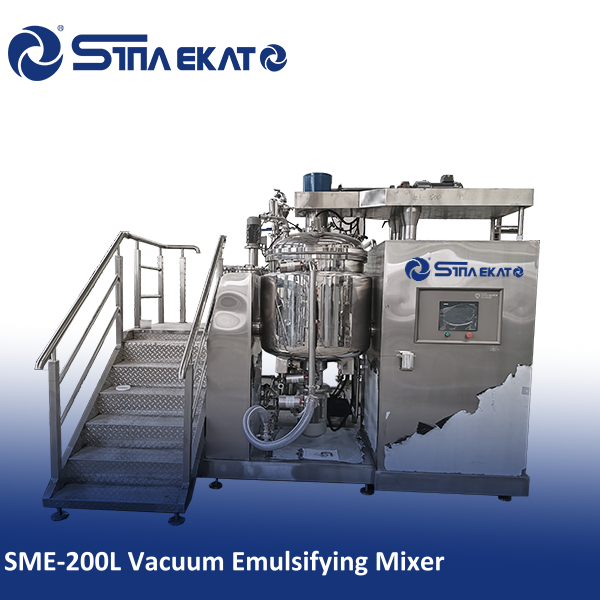

For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. Raw materials can be directly sucked into the groove by the machine. The machine is equipped with vacuum, hydraulic pressure, heating, cooling and other functions.
Emulsifying, blending and dispersion can be completed within a short period of time. Slow speed blade type blending and high speed homogenizing systems are provided with frequency conversion control. Users can select push button control or PLC touch screen system. Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard.
The advantage of the homogenizing emulsifier is that it can conveniently deal with a variety of product materials:
Complete Production Solutions:
| Model | Capacity | Homogenizer Motor | Stir Motor | Dimension (mm) | Total power (KW) | Vacuum (Mpa) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | r/min | KW | r/min | L | W | H | Steam | Electric | |||
| SME-D5 | 5L | 0.37 | 3000 | 0.18 | 63 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.09 |
| SME-D10 | 10L | 0.75 | 3000 | 0.37 | 63 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.09 |
| SME-D50 | 50L | 3 | 3000 | 1.1 | 63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.09 |
| SME-D100 | 100L | 4 | 3000 | 1.5 | 63 | 2750 | 2380 | 2100/2950 | 13 | 32 | -0.09 |
| SME-D200 | 200L | 5.5 | 3000 | 2.2 | 63 | 2750 | 2750 | 2350/3350 | 15 | 45 | -0.09 |
| SME-D300 | 300L | 7.5 | 3000 | 2.2 | 63 | 2900 | 2850 | 2450/3500 | 18 | 49 | -0.085 |
| SME-D500 | 500L | 11 | 3000 | 4 | 63 | 3650 | 3300 | 2850/4000 | 24 | 63 | -0.08 |
| SME-D1000 | 1000L | 15 | 3000 | 5.5 | 63 | 4200 | 3650 | 3300/4800 | 30 | 90 | -0.08 |
| SME-D2000 | 2000L | 15 | 3000 | 7.5 | 63 | 4850 | 4300 | 3800/5400 | 40 | - | -0.08 |
