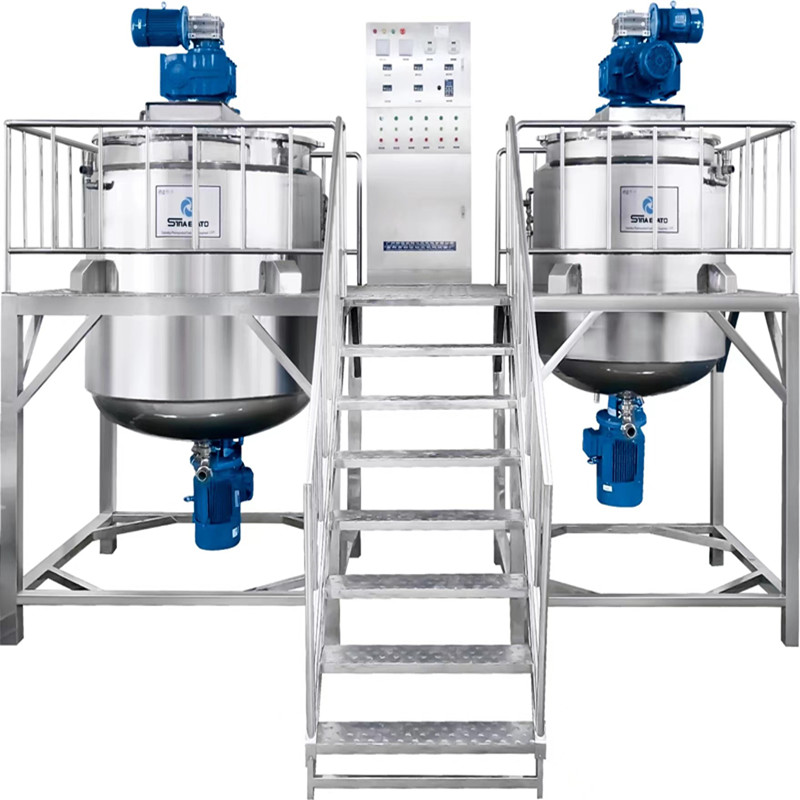

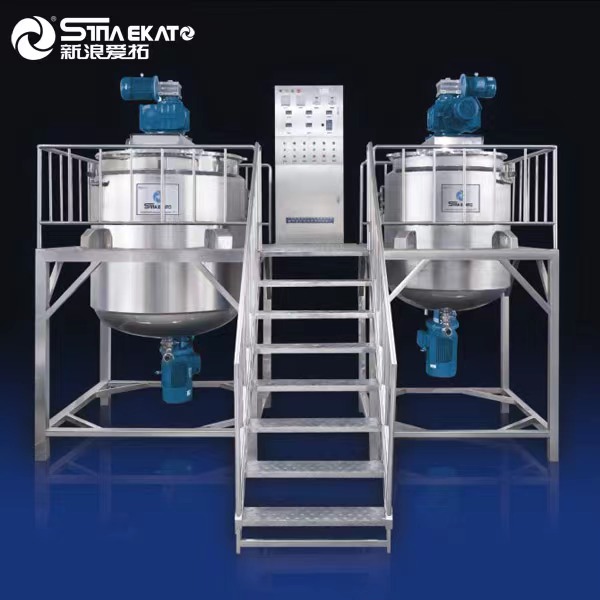

Liquid mixing machine is designed through a combination of internal and external advanced machinery technology. It effectively achieves the requirements of cosmetic, daily-use commodity, and food pharmacy industries that produce different varieties of high viscosity material products such as gel, liquid soap, detergent, shampoo, and liquid hand wash etc.

The liquid mixing machine is suitable for the reaction and mixing of different mucus such as mutual mixing, dissolution and uniform mixing. The mixing system adopts one-way or two-way scraping mixing and frequency conversion speed regulation. The pot body can be heated and cooled, which is suitable for the production of different process requirements.

Volume Choices: 150L, 200L, 300L, 1000L, 2000L, 3000L, 5000L, 8000L, etc.
Standard: The whole unit manufacture achieves GMP standard.
Industries: Applicable to liquid washing, textile auxiliaries, medicine and health care, food and beverage, spices, essence, fine chemicals and other industries.

Two different directions mixing with scraper

• ✔ PME Liquid washing homogenizing mixer adopts single-direction or double-direction scraping blending and frequency conversion speed adjustment to satisfy different technological requirements.
• ✔ Materials can be heated or cooled (Steam or electric heating options available).
• ✔ Various forms of blending vanes suitable for different types of products.
• ✔ Tank body and pipes made of imported SUS306L or SUS304 with mirror polishing.
• ✔ Optional vacuum pump for vacuum defoaming.
• ✔ Optional bottom installation type dispersing head and emulsifying head for faster dissolution.
• ✔ Stainless steel electric control cabinet for supervision of temperature and rotation speed.

Single direction mixing with scraper | Two different direction mixing with helicon mixing | Paddle mixing with guide plate

Homogenizer technology (Patent no: ZL 2016 2 0382415.4, ZL 2016 3 0157070.8). Features high-quality components including Schneider electrical parts, Siemens motor, and Siemens inverter.

Schneider electrical components & Siemens motor & Siemens inverter

Stainless Steel 304 Platform & Stair - Slippery-proof type design ensures operator safety and GMP compliance.
