Discount New-Semi-Automatic Vertical Gear Pump Filling Machine Manufacturer, Manufacturers

Introducing our new Semi-Automatic Vertical Gear Pump Filling Machine, an advanced servo-driven filling solution designed to replace traditional piston-type filling systems. This versatile machine supports unlimited filling capacity and is universally compatible with water, lotion, and cream products, delivering exceptional performance across a wide range of industries.

Product Description

Ideal for cosmetics, food, pharmaceutical, and chemical raw material sectors, this filling machine efficiently handles all types of liquids, creams, emulsions, facial creams, ointments, essential oils, laundry detergent, shampoo, body wash, semi-fluids, honey, and various viscous materials.

This servo gear pump filling machine redefines filling efficiency and convenience. Unlike traditional piston fillers, it eliminates complex disassembly for cleaning, reduces downtime, and ensures seamless production. The servo-driven system enables precise, programmable filling with unlimited capacity, making it the perfect upgrade for businesses looking to streamline their filling processes across cosmetics, food, and pharmaceutical production lines.

Semi-Automatic Vertical Gear Pump Filling Machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.

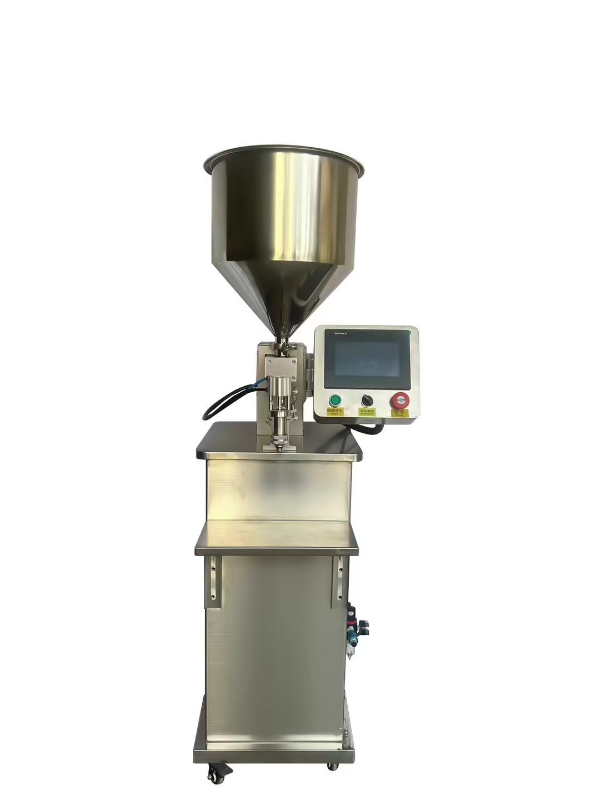

Filling Machine Front View

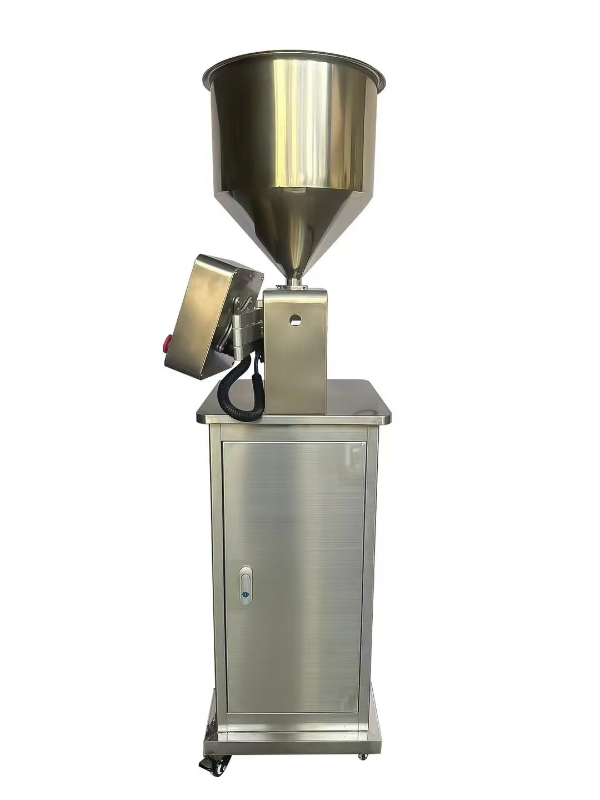

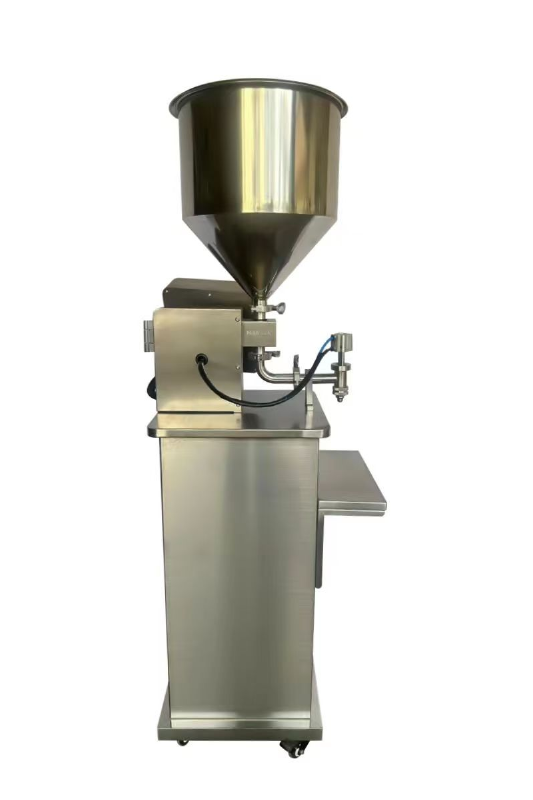

Filling Machine Side View
Parameter Details
Frame Material 304 stainless steel + high-grade anodized aluminum alloy, with 316L magnetic gear pump
Voltage & Power 220V, 50HZ, 850W
Filling Range 10ml - Unlimited (equipped with 60L/min high-flow pump)
Drive System Servo motor driven, with 2-stage speed setting; filling volume directly adjustable on touch screen
Operation Modes Foot pedal mode / continuous automatic mode
Filling Speed 20-40 bottles/min (subject to material, bottle type, and manual operation speed)
Filling Accuracy ยฑ0.5g
Machine Dimensions 600*450*1570MM
Suitable Bottle Height 30mm - 300mm

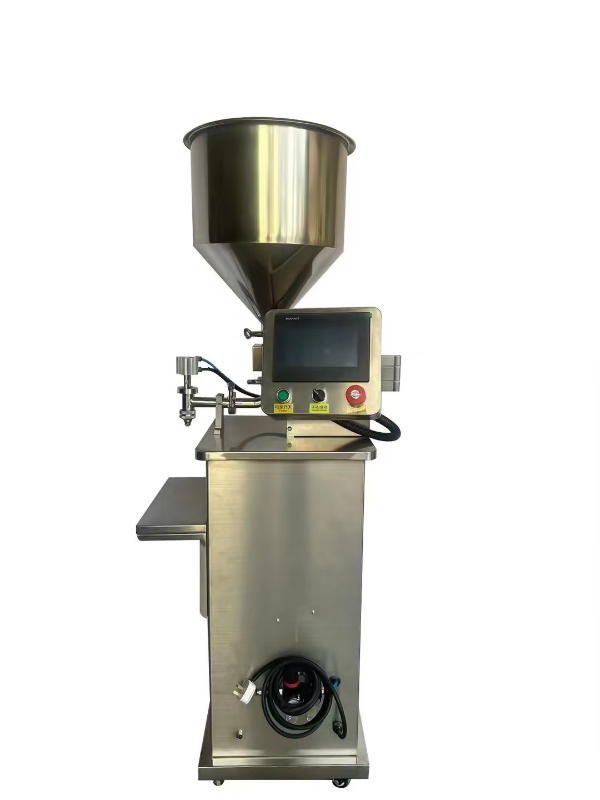

Machine Detail
Hair Conditioner Application
๐Ÿš€
Fast Filling Speed: Boost production efficiency with high-speed operation
๐Ÿ”„
Multi-purpose: Adapt to diverse products without complex reconfiguration
๐Ÿ–ฑ๏ธ
User-friendly Interface: Easy to learn "fool-proof" operation, minimizing training time
๐ŸŽฏ
High Accuracy: Ensure consistent, precise filling every time
๐Ÿ“
Small Footprint: Save valuable workshop space with a compact vertical design
๐Ÿงผ
Simple Cleaning: Easy disassembly for thorough cleaning, ideal for hygiene industries
๐Ÿงช
Wide Application: Suitable for liquids, semi-fluids, and high-viscosity materials
๐Ÿ“ฅ
Dual Feeding: Supports self-priming operation and use with a material hopper
Shampoo Filling Gallery
Shampoo 1
Shampoo 2
Shampoo 3
Shampoo 4
Shampoo 5
Shampoo 6
Feeding Table & Collection Table
CE Certificate Equipment
CE Certificate Approved
Related Solutions

Labeling Machine

Full-auto Filling Machine

Full Auto Solution
Frequently Asked Questions
What types of viscosity can this machine handle?
This servo gear pump filler is designed for a wide range of materials, including low-viscosity liquids like essential oils and high-viscosity materials like honey, creams, and ointments.
How does the servo gear pump differ from a piston filler?
Unlike piston fillers, the servo gear pump system allows for unlimited filling volume adjustments via the touch screen and eliminates the need for complex disassembly during cleaning, significantly reducing downtime.
What is the filling accuracy of this machine?
The machine utilizes a high-precision servo motor drive system, achieving a filling accuracy of approximately ยฑ0.5g, ensuring consistent product weight for every container.
Can I use this machine for different bottle sizes?
Yes, the machine is highly adjustable and suitable for various plastic or glass bottle specifications with heights ranging from 30mm to 300mm.
Is the machine easy to clean for pharmaceutical use?
Absolutely. The machine is constructed from 304/316L stainless steel and features a simple disassembly design, making it easy to sanitize and meet the strict hygiene requirements of the pharmaceutical and food industries.
Does it support automatic production lines?
While this specific model is semi-automatic with foot pedal and continuous modes, it is designed to be compatible with feeding and collection tables for enhanced workflow efficiency.
