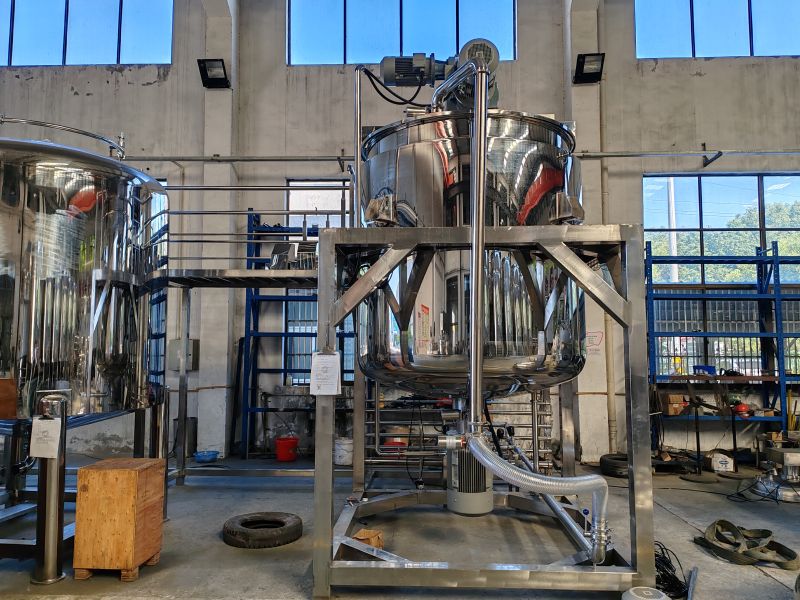

The PME-4000L Mixer adopts a fixed pot body, where the pot cover and body are connected via a flange for stable operation. This diversified high-speed homogenizer is engineered to powerfully mix solid and liquid raw materials. It can rapidly dissolve indissoluble materials such as AES, AESA, and LSA during the liquid detergent production process, significantly reducing energy consumption and shortening production cycles.
◈
Premium Construction: The mixer pot features three-layer stainless steel welding. The inner layer is imported SUS316L stainless steel, while the jacket and insulation layers are 304 stainless steel.
◈
GMP Standards: All tank bodies and pipelines are mirror-polished or matte-finished to fully meet GMP requirements.
◈
Stirring System: Adopts double-direction wall scraping mixing with frequency conversion speed adjustment to satisfy various technological needs.
Professional Project Management
With extensive experience in domestic and international installations, we provide top-ranking professional project management and equipment maintenance services.
Technical Specifications
| Working Volume |
4000L |
| Design Volume |
5000L |
| Homogenizer Motor |
Power(KW) |
30KW |
| Rotate speed(r/min) |
0-3000 r/min |
| Stir Motor (external Mixing) |
Power(KW) |
7.5KW |
| Rotate speed(r/min) |
0-60r/min |
| Stir Motor (internal Mixing) |
Power(KW) |
15KW |
| Rotate speed(r/min) |
0-30r/min |
| Overall Dimension(L*W*H) |
2300*2300* mm |
| Type of Heating |
Steam heating |
Note: In case of data inconformity due to technical improvement or customization, the real object shall prevail.
Industry Applications
Our products are widely applied in industries such as cosmetics, medicine, food, chemical industry, and electronics, serving numerous globally recognized enterprises.
Quality Assurance & Certifications
80% of main parts are provided by world-famous suppliers. Our long-term cooperation ensures high-quality products and effective guarantees.
✔ Delivery: 30~60 days
✔ Warranty: Two-year equipment warranty
✔ Inspection: Support video factory and product inspection
Core Elements of PME-4000L Mixer

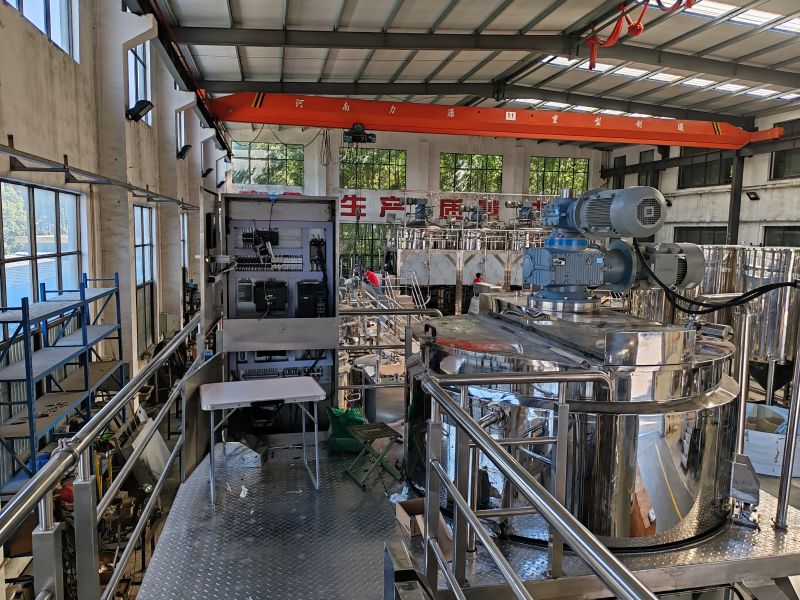

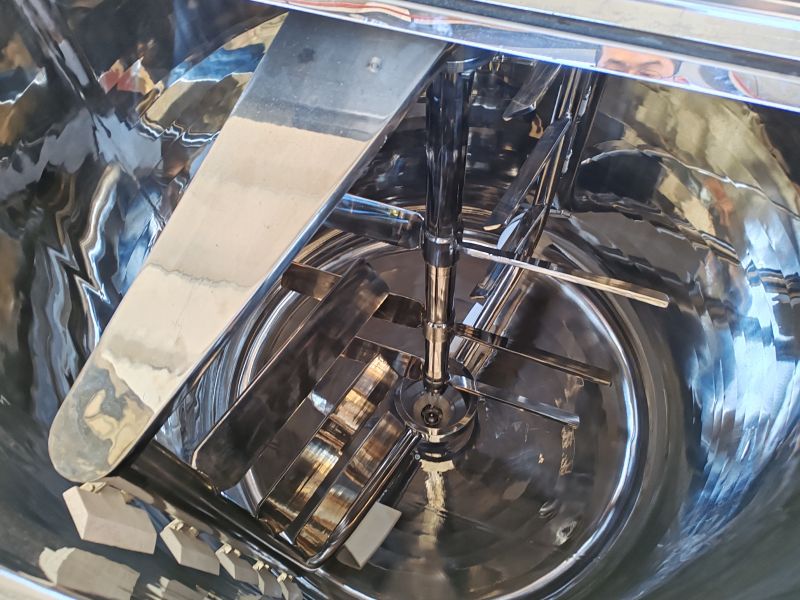

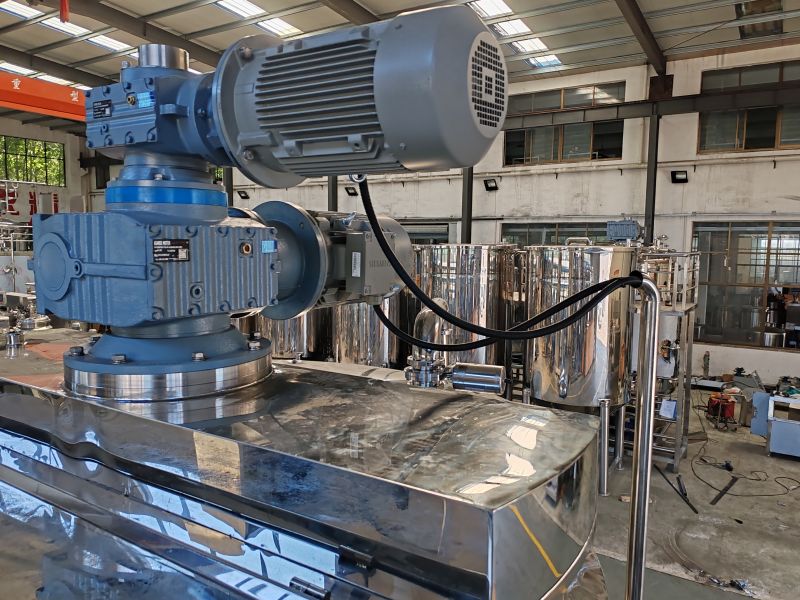

Top Mixing System
Features bi-directional wall-scraping stirring powered by a Siemens motor, ensuring thorough blending of ingredients.

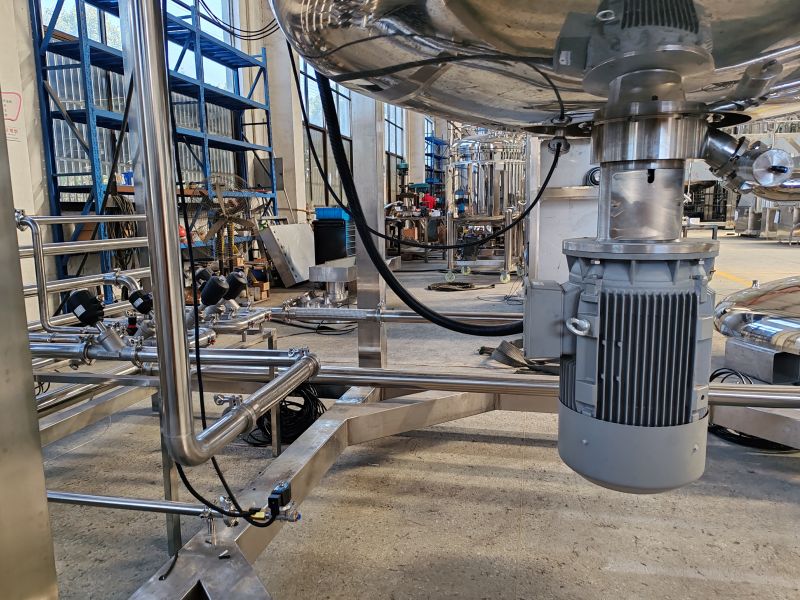

Bottom Homogenizer System
Designed for efficient blending and high shear forces, facilitating the dispersion of particles and creating stable emulsions. Offers precise control over mixing speed and circulation flow.

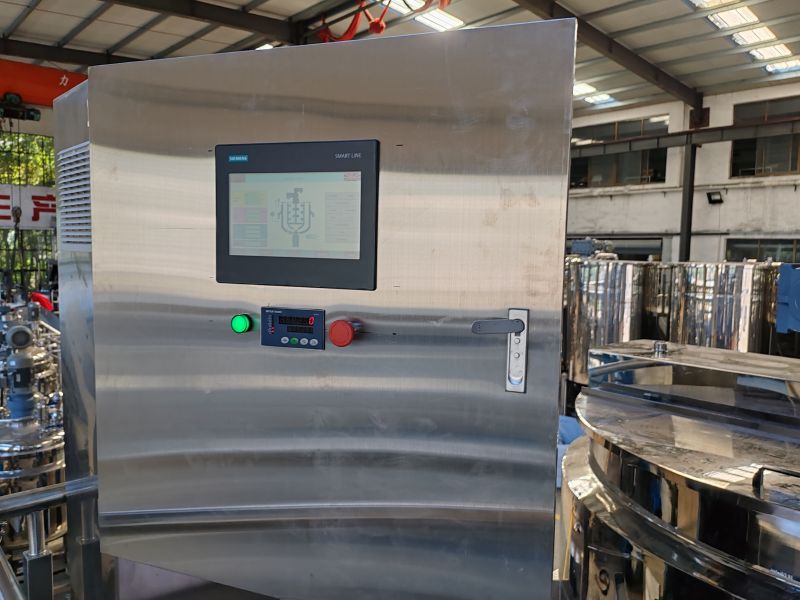

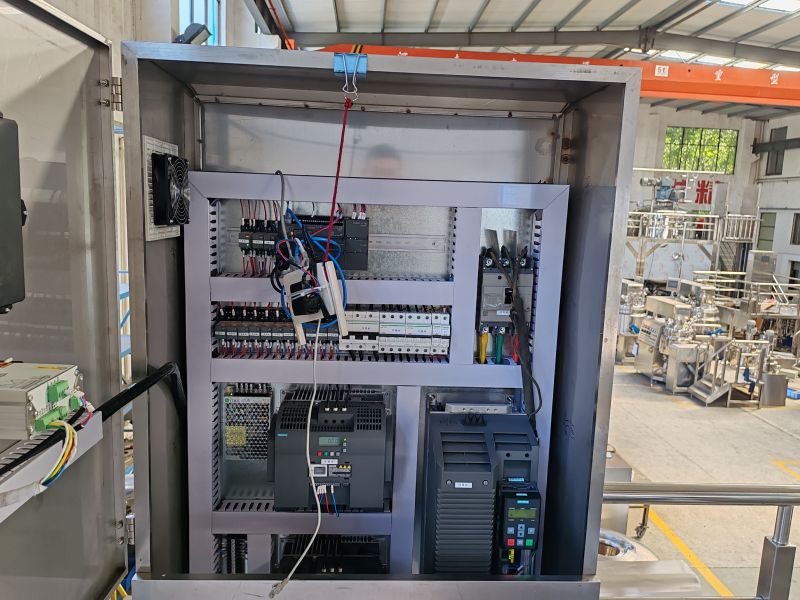

Advanced Control Cabinet
Equipped with a Siemens PLC touch screen and Schneider electrical components. It provides a user-friendly interface for automation, precise parameter control, and real-time data monitoring.
Integrated Production Line

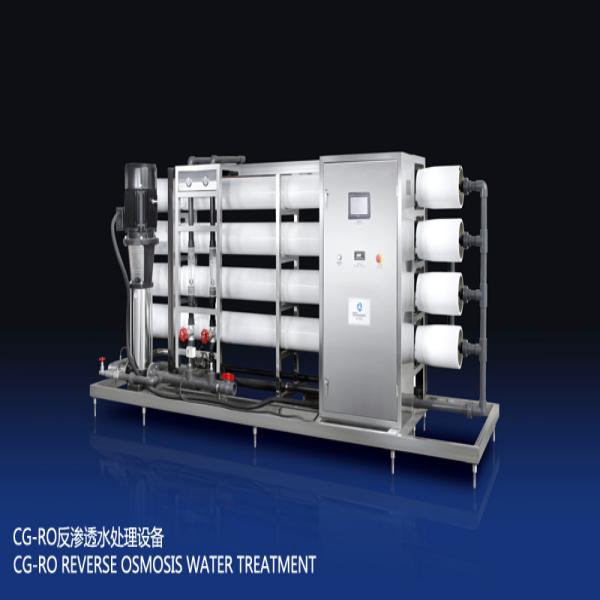

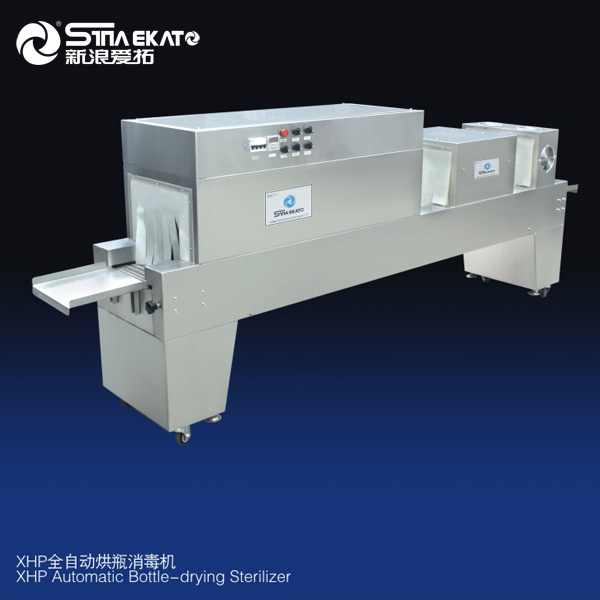

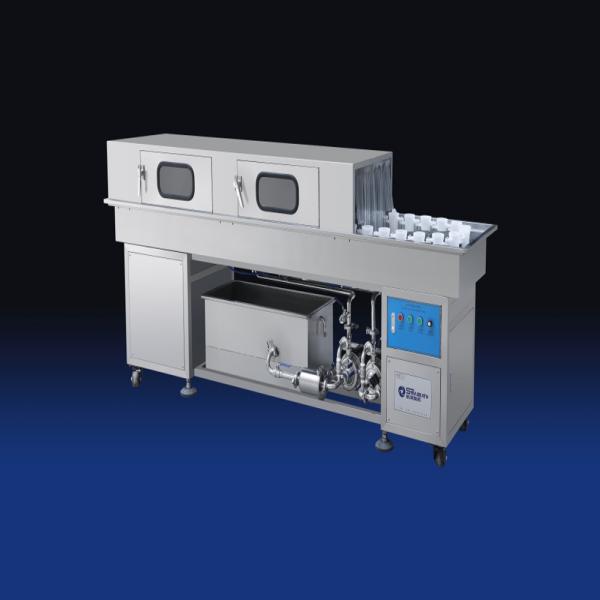

RO Treatment Water System | Auto Washing Bottle Machine | Bottle Drying Machine

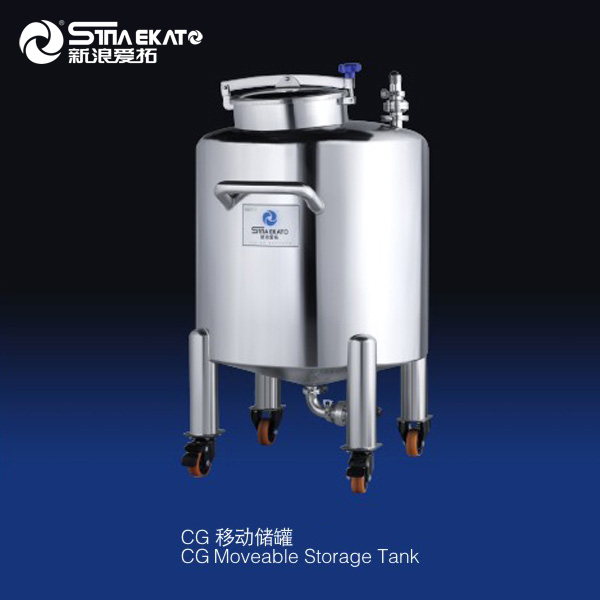

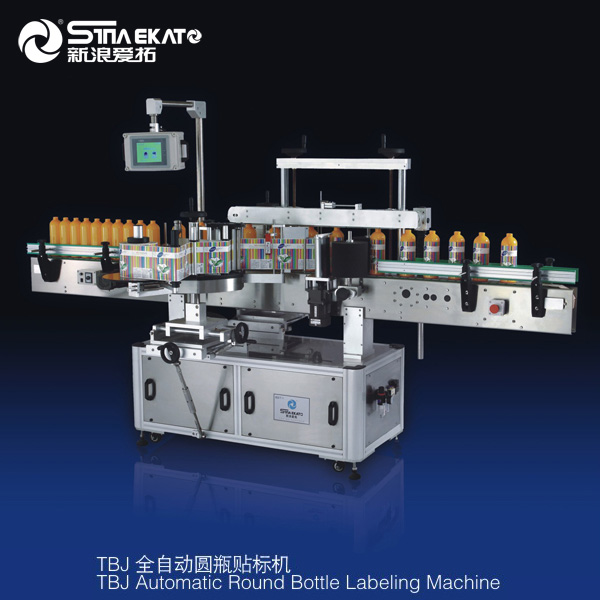

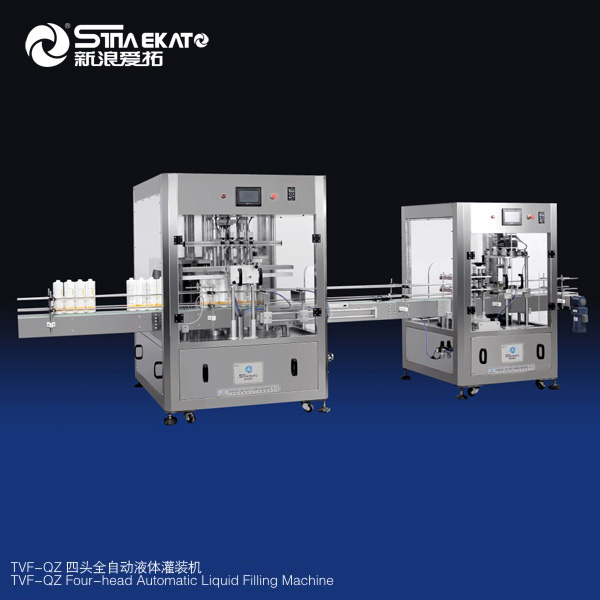

Sterile Storage Tank | Auto Liquid Filling Machines | Auto Labeling Machine
Frequently Asked Questions (FAQ)
1. What materials are used in the construction of the PME-4000L mixer?
The inner layer in direct contact with materials is made of SUS316L stainless steel. The jacket and insulation layers are made of SUS304 stainless steel, ensuring durability and GMP compliance.
2. What are the main electrical component brands used?
The machine utilizes high-quality international brands, including Siemens motors, Siemens PLC and inverters, Schneider Electric components, and Omron instruments.
3. Can the homogenizer speed be adjusted?
Yes, the homogenizing speed is fully adjustable from 0-2880r/min (standard) up to 3000r/min via the Siemens PLC touch screen and inverter.
4. Is the equipment suitable for high-viscosity products?
Yes, the double-direction wall-scraping mixing system and high-shear bottom homogenizer are specifically designed to handle and mix materials of varying technological requirements, including indissoluble raw materials.
5. What kind of heating system does the mixer use?
The PME-4000L standard model is designed for steam heating, which provides efficient and uniform temperature control for the liquid detergent production process.
6. Does the system support automated operation?
Absolutely. The independent PLC electronic control cabinet allows for automated monitoring and control of stirring speed, homogenization speed, and temperature through an intuitive touch screen interface.
