| Model |
Capacity |
Homogenizer Motor |
Stir Motor |
Dimension |
Total Power |
Limit vacuum(Mpa) |
| KW |
r/min |
KW |
r/min |
Length(mm) |
Width(mm) |
Height(mm) |
Steam heating |
Electric heating |
| SME-AE5 |
5L |
0.37 |
3000 |
0.18 |
63 |
1260 |
540 |
1600/1850 |
2 |
5 |
-0.09 |
| SME-AE10 |
10L |
0.75 |
3000 |
0.37 |
63 |
1300 |
580 |
1600/1950 |
3 |
6 |
-0.09 |
| SME-AE50 |
50L |
3 |
3000 |
1.1 |
63 |
2600 |
2250 |
1950/2700 |
9 |
18 |
-0.09 |
| SME-AE100 |
100L |
4 |
3000 |
1.5 |
63 |
2750 |
2380 |
2100/2950 |
13 |
32 |
-0.09 |
| SME-AE200 |
200L |
5.5 |
3000 |
2.2 |
63 |
2750 |
2750 |
2350/3350 |
15 |
45 |
-0.09 |
| SME-AE300 |
300L |
7.5 |
3000 |
2.2 |
63 |
2900 |
2850 |
2450/3500 |
18 |
49 |
-0.085 |
| SME-AE500 |
500L |
11 |
3000 |
4 |
63 |
3650 |
3300 |
2850/4000 |
24 |
63 |
-0.08 |
| SME-AE1000 |
1000L |
15 |
3000 |
5.5 |
63 |
4200 |
3650 |
3300/4800 |
30 |
90 |
-0.08 |
| SME-AE2000 |
2000L |
15 |
3000 |
7.5 |
63 |
4850 |
4300 |
3800/5400 |
40 |
_ |
-0.08 |
| Note: In case of inconformity of the data in the table due to technical improvement or customization,the real object shall prevail |
1
Bottom Homogenizer & Inner circulation homogeneous System
Good homogenization effect: the lower homogenization and internal circulation homogenization system can perform multiple homogenizations at the same time, making the emulsification effect better and the product quality more stable.
2
Helical Ribbon mixing & Double way Mixing System
Mix evenly: The two-way ribbon scraping wall mixing system can push the material up from the bottom of the agitator, and then pull down from the top, so that the material can be fully mixed to achieve better uniformity.
3
Variable speed control
The vacuum homogeneous emulsifier adopts frequency conversion speed regulation, the speed can be adjusted in a wide range, and the operation is flexible, and it can be adjusted according to the needs of different materials.
4
Aseptic processing
The vacuum homogenizing emulsifier is equipped with a high-precision temperature and pressure control system, which can realize aseptic processing and meet the requirements of the food and pharmaceutical industries.
5
Advanced Lifting Systems
The lifting systems include single-cylinder lifting and double-cylinder lifting. The triple mixing adopts the imported frequency converter for speed adjustment which can meet different technological demands.
6
High Shearing Fineness
The maximum emulsifying rotation speed can reach 4,200 rpm and the highest shearing fineness can reach 0.2-5 um. Vacuum defoaming ensures aseptic material requirements.
7
Vacuum Material Sucking
Adopted for powder materials to avoid dust. The emulsifying pot lid features a lifting system for easy cleaning, and the pot can adopt tilt discharge.
8
GMP Standard Construction
The pot body is welded by imported three-layer stainless steel plate. Tank body and pipes adopt mirror polishing, fully conforming to GMP requirements. Heating modes include steam or electric heating.
Fully automatic production line
Reverse Osmosis Water Treatment
Aseptic Storage Tank
Semi-Automatic Filling Machine
Capping Machine
Labeling Machine

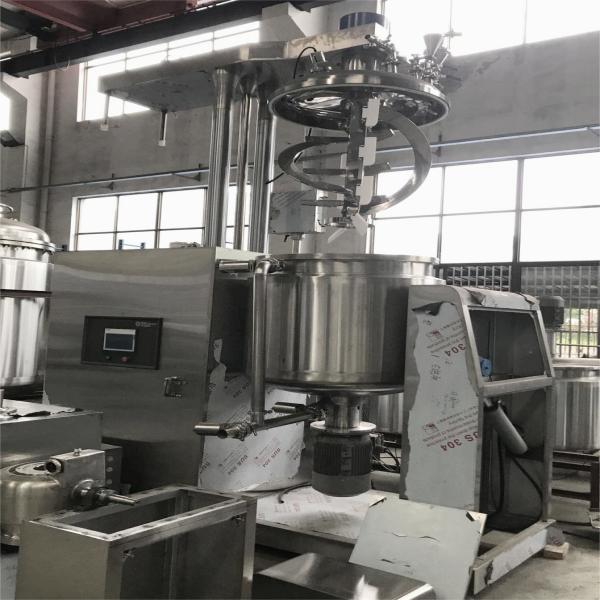

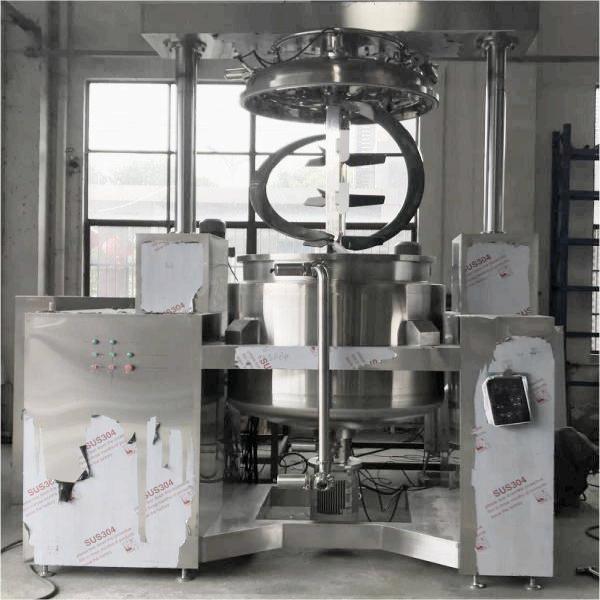

Helical Ribbon mixing
Bottom Homogenizer
Bottom material outlet

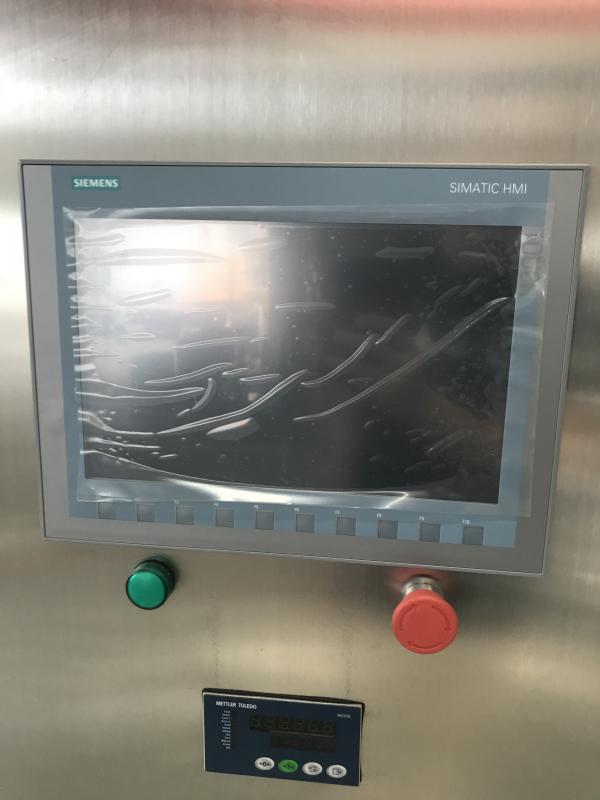

Siemens Touch Screen

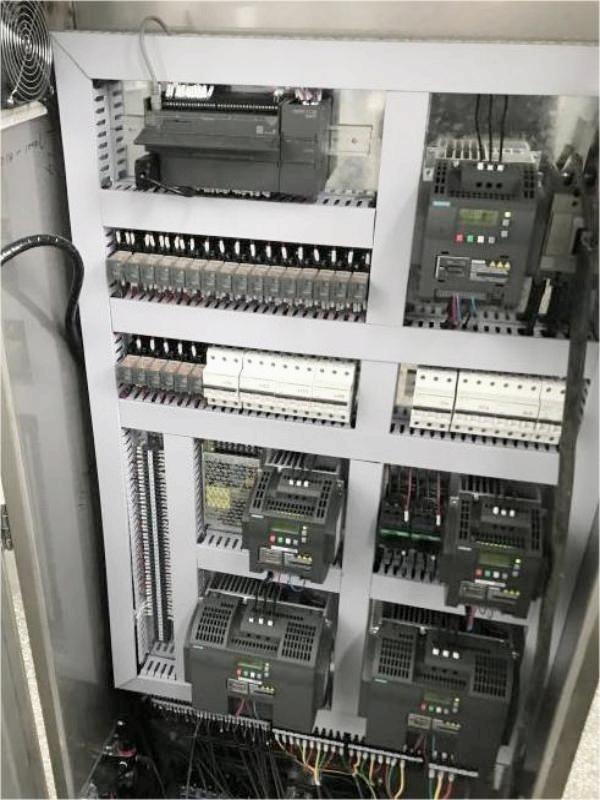

PLC Control Box
| hair conditioner |
facial mask |
moisturizing lotion |
suncream |
| skin care |
shea butter |
body lotion |
sunscreen cream |
| cream |
hair cream |
cosmetic paste |
BB Cream |
| lotion |
face wash liquid |
mascara |
foundation |
| hair color |
face cream |
eye serum |
hair gel |
| hair dye |
lip balm |
serum |
lip gloss |
| emulsion |
lipstick |
highly viscous product |
shampoo |
| cosmetic toner |
hand cream |
shaving cream |
moisturizing cream |
| cheese |
milk butter |
ointment |
ketchup |
| mustard |
peanut butter |
mayonnaise |
wasabi |
| toothpaste |
margarine |
Salad dressing |
sauce |

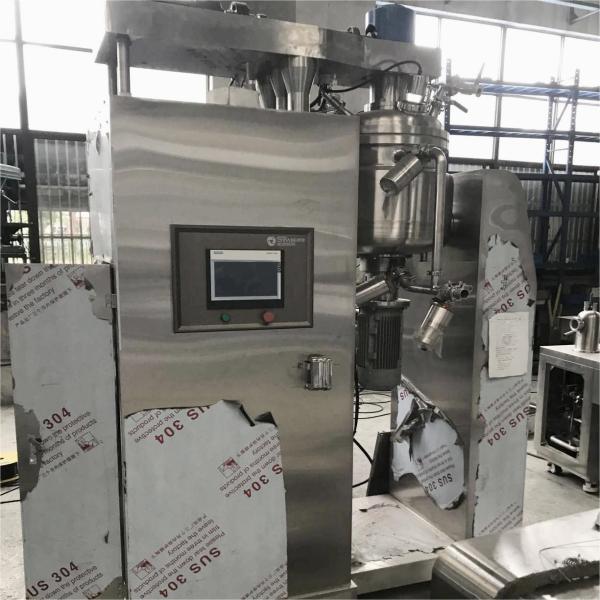

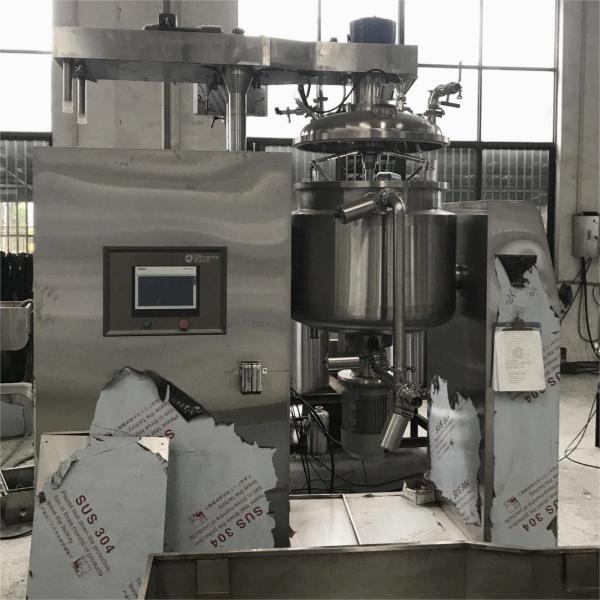

SME-AE vacuum homogenizer under manufacture
Frequently Asked Questions
Q1: What are the main heating methods for the vacuum homogenizing emulsifier?
A: The machine primarily supports two heating modes: steam heating and electric heating, which can be selected based on your technological requirements.
Q2: How does the internal circulation homogeneous system improve product quality?
A: The lower homogenization and internal circulation system perform multiple homogenizations simultaneously, resulting in a superior emulsification effect and more stable product quality.
Q3: Is the equipment compliant with hygiene standards for food and pharmaceuticals?
A: Yes, the tank body and pipes feature mirror polishing and are made of imported three-layer stainless steel, fully conforming to GMP requirements for aseptic processing.
Q4: What is the maximum rotation speed and fineness the machine can achieve?
A: The maximum emulsifying rotation speed can reach up to 4,200 rpm, achieving a shearing fineness between 0.2 and 5 μm.
Q5: Can the mixing speed be adjusted for different materials?
A: Yes, the system utilizes frequency conversion speed regulation (frequency converters), allowing for a wide range of flexible speed adjustments to meet various process demands.
Q6: How does the vacuum system handle powder materials?
A: The equipment uses vacuum material sucking, which is specifically effective for powder materials to prevent dust pollution during the production process.
