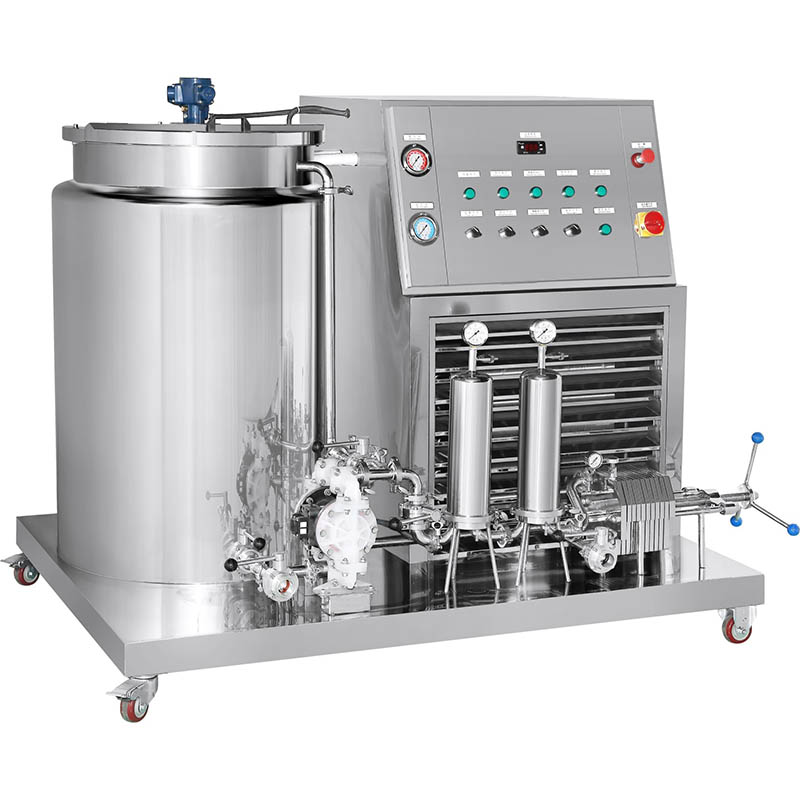

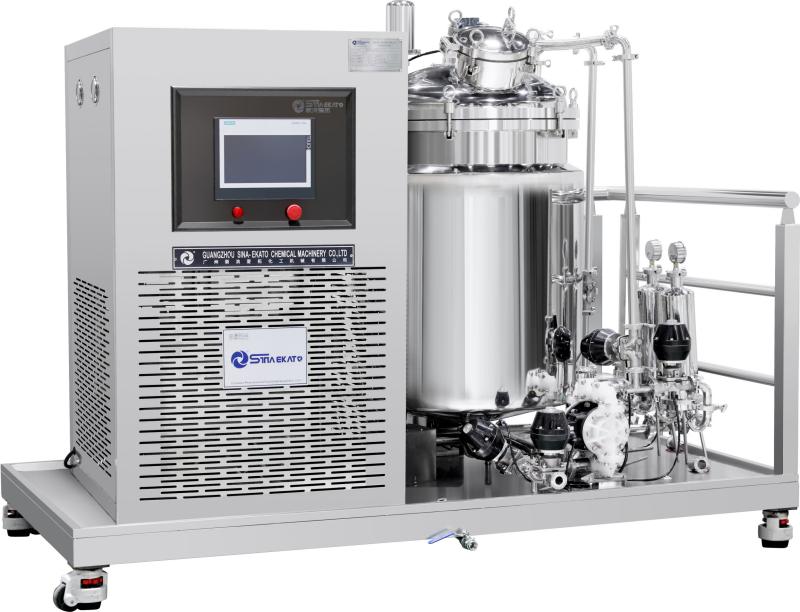

High-Quality 500L stainless steel mixing and chilling perfume machine with PLC control, automatic valve Factory, Factories
High-Quality 500L stainless steel mixing and chilling perfume machine with PLC control, automatic valve Factory, Factories
1 / 2
High-Quality 500L stainless steel mixing and chilling perfume machine with PLC control, automatic valve Factory, Factories
High-Quality 500L stainless steel mixing and chilling perfume machine with PLC control, automatic valve Factory, Factories

High-Quality 500L stainless steel mixing and chilling perfume machine with PLC control, automatic valve Factory, Factories

Based on the introduction of foreign advanced technology, SINAEKATO specializes in the clarification and filtration of cosmetics, perfumes and other liquids after freezing. It is the ideal equipment for filtering cosmetics and perfumes in cosmetics factories.
Send Inquiry

Product Description

❄️ Stainless steel heat preservation freezing tank and titanium metal coil pipe
⚙️ Freezing unit (Imported high-performance compressors)
🌀 Anti-corrosive pneumatic diaphragm pump (Imported from USA)
🧪 Polypropylene micro porous filtration film (USA Technology)
🏗️ Stainless steel movable supporter, easy to operate
🛡️ Sealing type electric control system and sanitary pipe fittings

This advanced Perfume-making Machine Fragrance Chiller Filter Mixer is expertly designed for the production of perfume, fragrance, hair spray, body spray, and other alcohol-based liquids.

Technical Parameter
Model2P-1003P-2005P-3005P-50010P-1000
Freezing power2P3P5P5P10P
Freezing capacity100L200L300L500L1000L
Filtration precision0.1μm0.1μm0.1μm0.1μm0.1μm
Refrigeration temperature-5°C to -15°C
Refrigeration liquidR22 (Optional mediums available)
More sizes accept customized solutions
Filtration System: Equipped with polypropylene microporous filtration film, achieving filtration accuracy of 0.2 μm.
Mixing & Chilling: SUS316L material contact parts. Integrates mixing, chilling, and filtering functions into one unit.
Pneumatic Mixing Motor: High safety standard, suitable for alcohol-based liquids. Mixing speed: 0-900rpm.
Control Components: Precision button control with emergency stop switch for operator safety.
Pneumatic Pump: Double function for raw material transfer and finished product discharge.

Complementary Equipment:

Perfume Crimping Machine (Semi-auto) | Perfume Filling Machine | Perfume Paper Filter | Perfume Cartridge Filter

Constructed from high-quality SUS304 or SUS316L stainless steel, this system utilizes a USA-imported pneumatic diaphragm for positive pressure filtration. All connecting pipes are sanitary polished with rapid-install fittings for easy assembly and cleaning. It is widely used in cosmetics, research, and laboratory settings for clarification and bacteria removal.

System includes: Mixing tank + Chiller system + Circulation Pump + 3-stage filtration process.

1. What materials are used for the perfume contact parts?
All material contact parts are made of high-quality SUS316L stainless steel to ensure durability and hygiene.
2. What is the standard filtration precision?
The machine is equipped with polypropylene microporous filtration film, reaching a precision of 0.1μm to 0.2μm.
3. Can the refrigeration temperature be adjusted?
Yes, the chilling system can maintain a temperature range between -5°C and -15°C for optimal fragrance processing.
4. Is the mixing motor safe for alcohol-based products?
Absolutely. We use a pneumatic mixing motor which is explosion-proof and ideal for mixing liquids with high alcohol content.
5. What capacities are available for this machine?
Standard capacities range from 100L up to 1000L. Customized sizes are also available upon request.
6. How many processes does the machine handle simultaneously?
A single unit integrates raw material mixing, chilling, circulation pumping, and a 3-stage filtration process.
