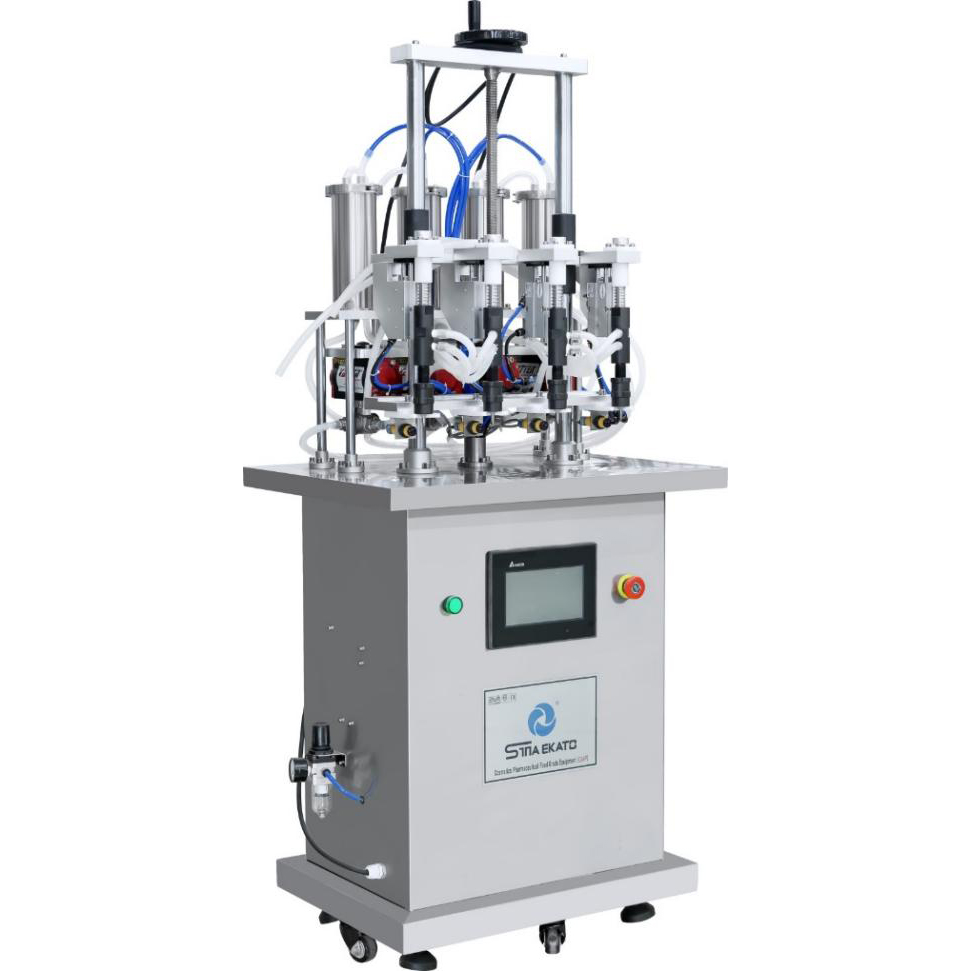

CE Certification TVF Perfume Vacuum Filling Packing Machine Fragrance Oil Filling Packing Machine Manufacturers, Factories

The automatic perfume filling machine is based on the vacuum principle. The air storage tank and computer display are used for precise filling. When the glass bottle or plastic bottle is pushed to the position of the sensor, the sensor senses the material and will automatically dive down for filling.

Product Description

Electric eye sensing system
Electric eye sensing, precise positioning, no bottle, no filling
Negative pressure filling can suck back excess materials and save raw materials
The return reservoir is made of stainless steel to reduce raw material pollution
PLC intelligent control

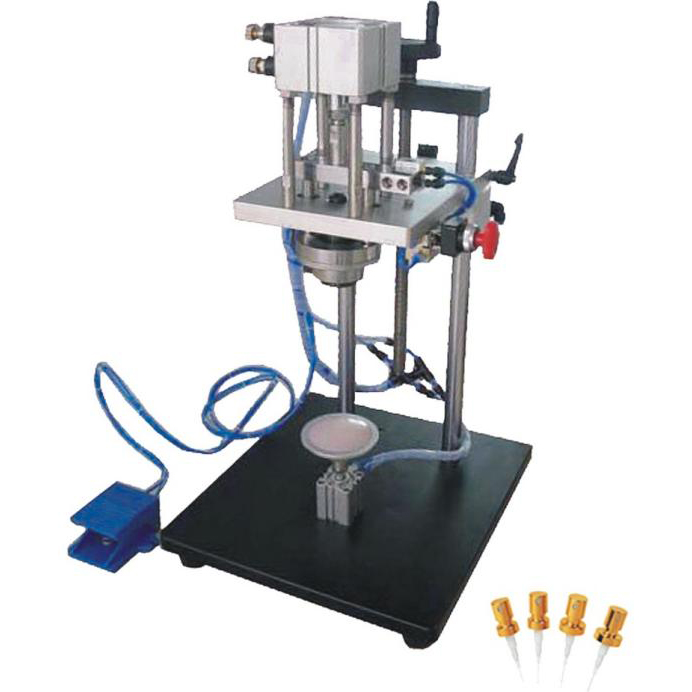

Semi-auto Perfume Crimping Machine
Semi-auto Perfume Crimping Machine (crimping head can be 13mm, 15mm, 17mm, 21mm...ect)

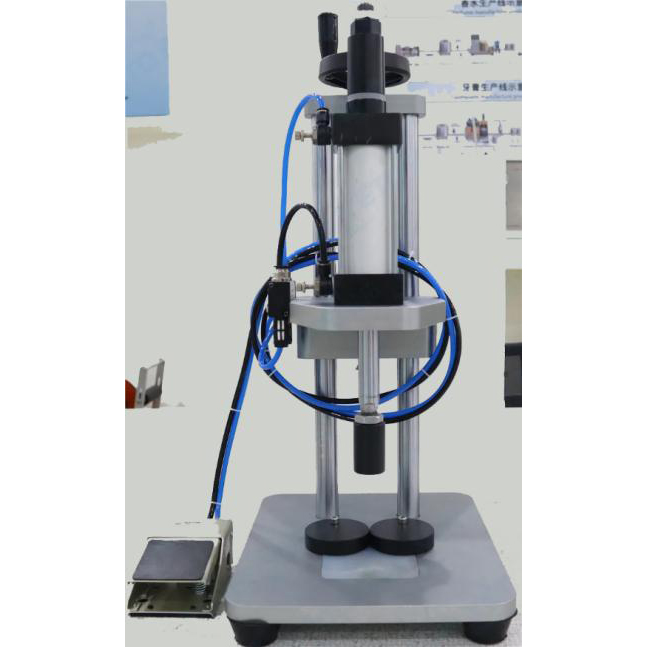

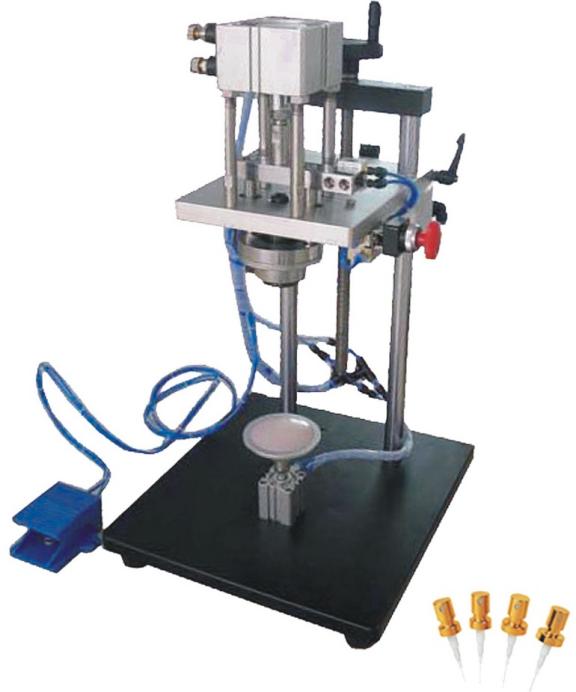

Semi-auto Perfume Collaring Machine

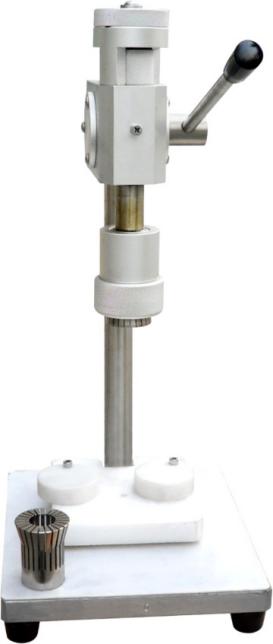

Manual Collaring Machine
Semi-auto Perfume Collaring Machine (collaring head can be 13mm, 15mm, 17mm, 21mm...ect) / Manual Collaring Machine
Main Parameter (Can be customized):
Bottle height ≤250mm
Maximum diameter of bottle mouth ≤20mm
Minimum diameter ≥4.5mm
Adjustable liquid level high (from the bottle mouth) 26-50mm
Boundary dimension (excluding liquid storage bottle) 660X470X 1330mm
Power Supply 220V Single-phase
Vacuum pump XD-020 (explosion-proof type 2X-4A)
Pumping rate 5.5 (explosion-proof type 4) L/s
Motor power 0.75 Kw

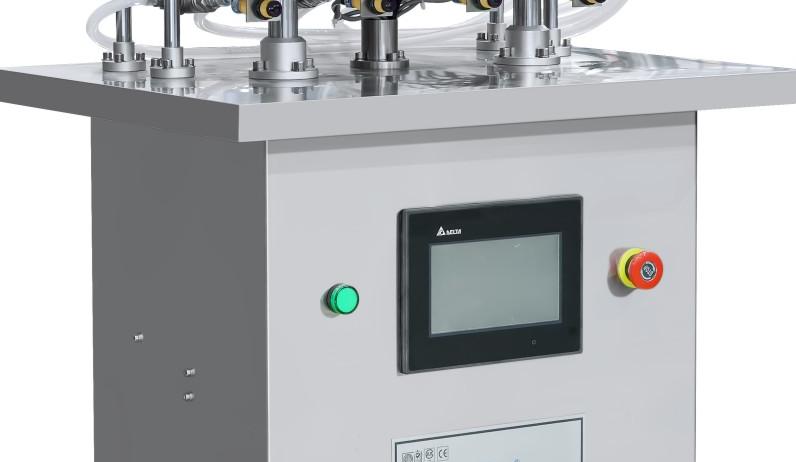

Control Panel Interface
Control Panel Details
Control Panel Screen
Simple operation panel, it can control the working parameter easily. It is no need to training operator. We can customize different kinds of languages according to operation needs.

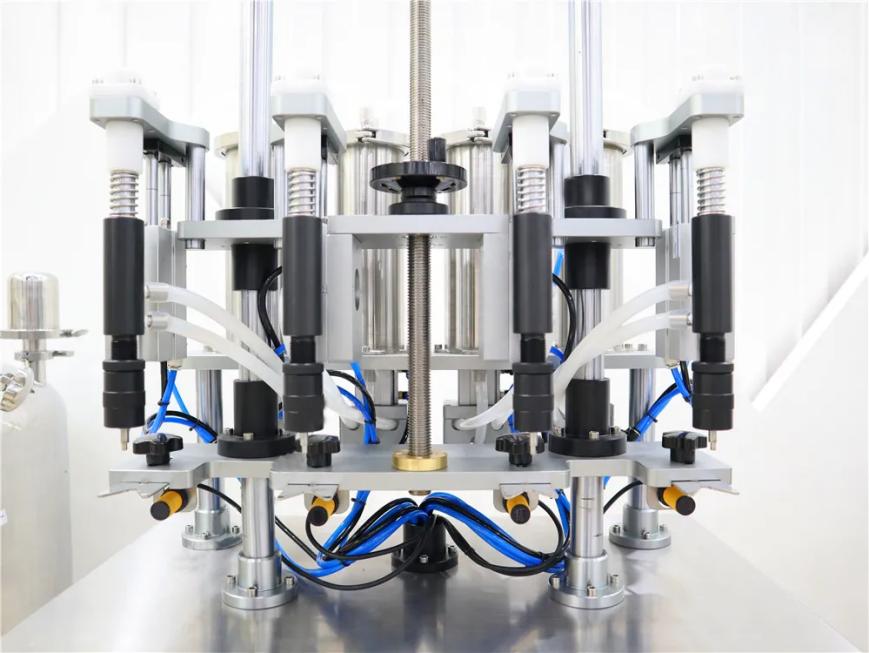

Vacuum Constant Liquid-level Nozzles

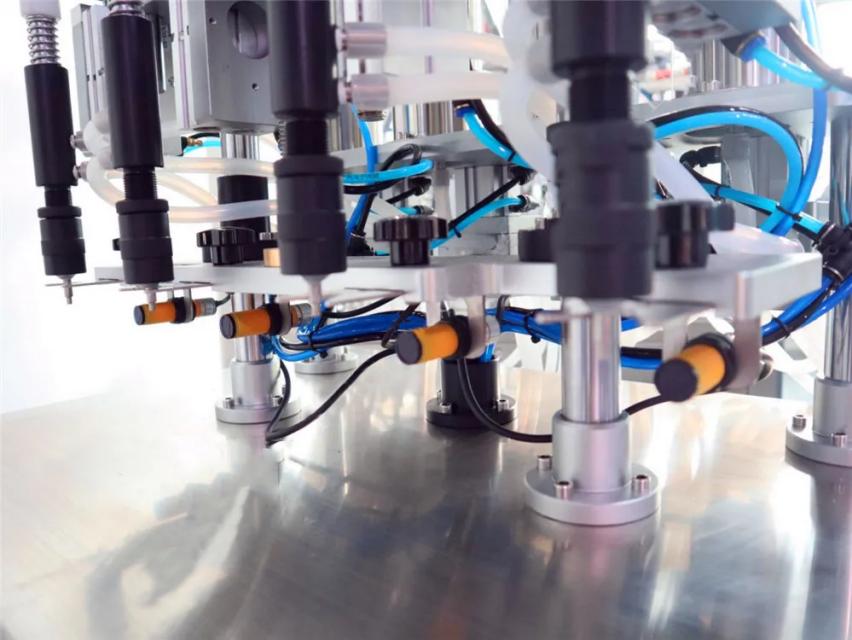

Nozzle Positioning and Electric Eye

Use the vacuum constant liquid-level working principle, fill liquid accurately. If the liquid level is over the position that marked by red line, the machine will suck the extra liquid and make it back flow to the material container. There is a spring for each nozzle, that can prevent the bottle from breaking due to larger air pressure.

Equipped with high quality electric eye, each nozzle can be controlled to fill liquid when the electric eye receives and sends out signal to the system. The white bottle fixing component can help to fix bottles when the machine start to work, prevent the bottle from falling down.

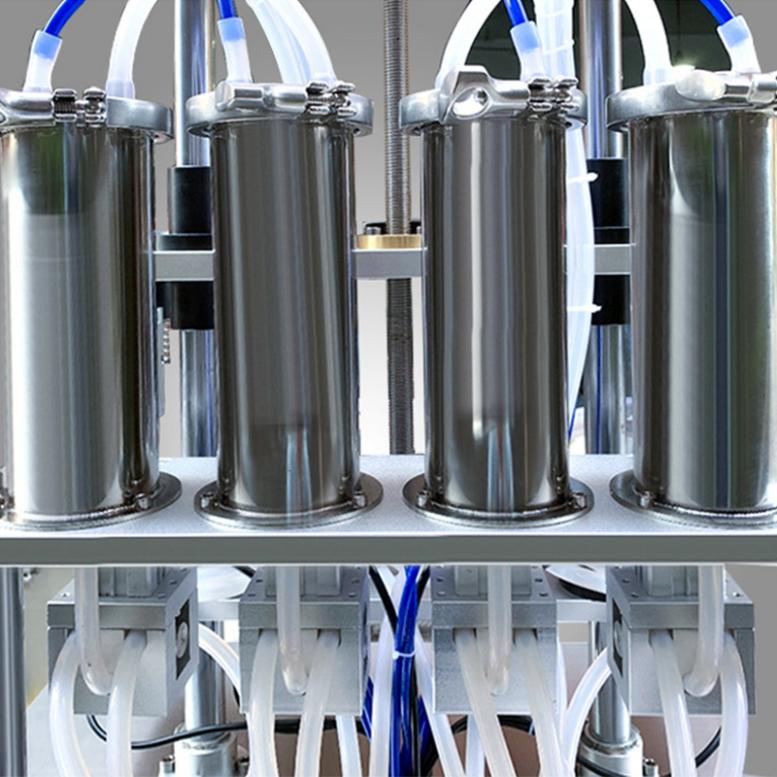

Large Material Cylinder
Large material cylinder can be used to contain flowed back liquid. Ensures the filling accuracy.
Cartridge Filter Detail 1
Cartridge Filter Detail 2
Diagram Pump Component

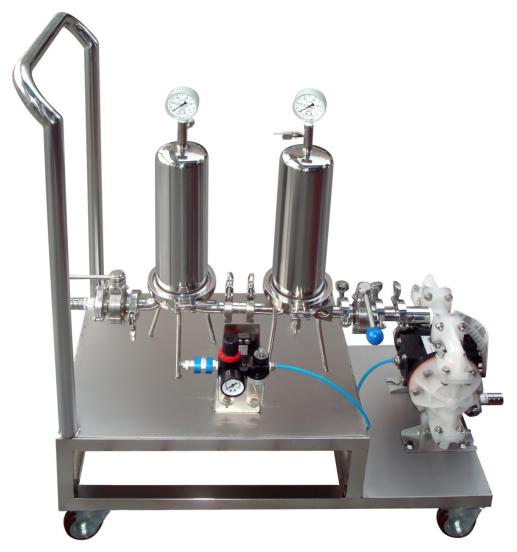

Perfume Cartridge Filter & Diagram Pump
Manual Crimping Machine Unit
Manual Crimping Machine
Paper Filter Detail 1
Paper Filter Detail 2
Diagram Pump Connection

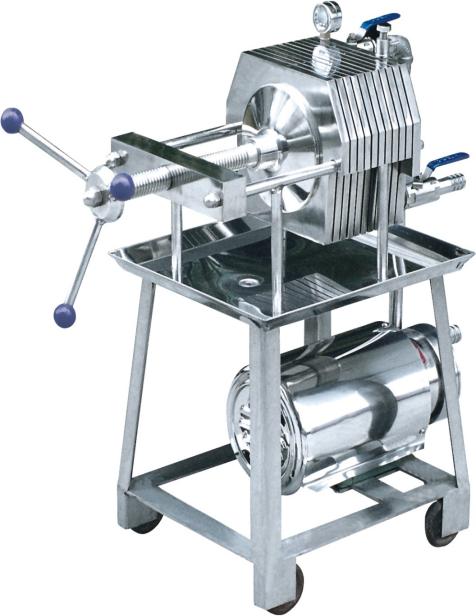

Perfume paper Filter & Diagram Pump
Perfume Bottles Showcase 1
Perfume Bottles Showcase 2
Frequently Asked Questions
Q: How does the vacuum constant liquid-level filling system work?
The system relies on negative pressure vacuum suction. It fills the perfume up to a preset marker. If the liquid goes above this level, the excess is automatically drawn back into the container reservoir, ensuring uniform liquid levels and preventing raw material wastage.
Q: Can the crimping and collaring heads be customized for different bottle sizes?
Yes, the crimping and collaring heads are fully customizable. Standard sizes include 13mm, 15mm, 17mm, and 21mm, and custom options can be configured based on your bottle requirements.
Q: What is the role of the electric eye sensor on this machine?
The electric eye sensor provides precise position sensing. It ensures the machine only initiates the filling sequence when a bottle is accurately positioned, preventing misaligned spills or filling when no bottle is present.
Q: Is training required to operate the control panel?
No professional training is required. The control panel features an intuitive, user-friendly interface that allows operators to easily configure working parameters. We also support multiple language settings to meet global operational needs.
Q: What types of filtration systems are compatible with this equipment?
The setup is designed to work with both Cartridge Filters and Paper Filters integrated with Diaphragm Pumps. These systems effectively filter impurities, ensuring high purity and clarity in the final perfume product.
Q: Does the nozzle pressure risk damaging delicate glass bottles?
No, each filling nozzle is equipped with a dedicated buffer spring. This feature cushions the nozzle stroke and absorbs excess air pressure, preventing thin-necked or delicate glass bottles from breaking during the cycle.
